The wide range proportioner accurately proportions foam concentrate into a water stream over a wide range of system flow rates. The device is configured to proportion foam concentrate at a 3% ratio. Wide range proportioners are an integral part of an approved foam system. In addition to the wide range proportioner, the main components of the approved foam system are: foam concentrate, a foam storage tank, a concentrate control valve, and foam discharge devices.
he wide range proportioner has the capability to accurately proportion foam concentrate into the water supply at low flow rates as required when only a small quantity of sprinklers have activated.
Primarily intended for use in wet pipe systems and pre-action systems, the wide-range proportioner accurately doses foam concentrate into the water supply network even at low flow rates, as required when only a few sprinklers are activated.

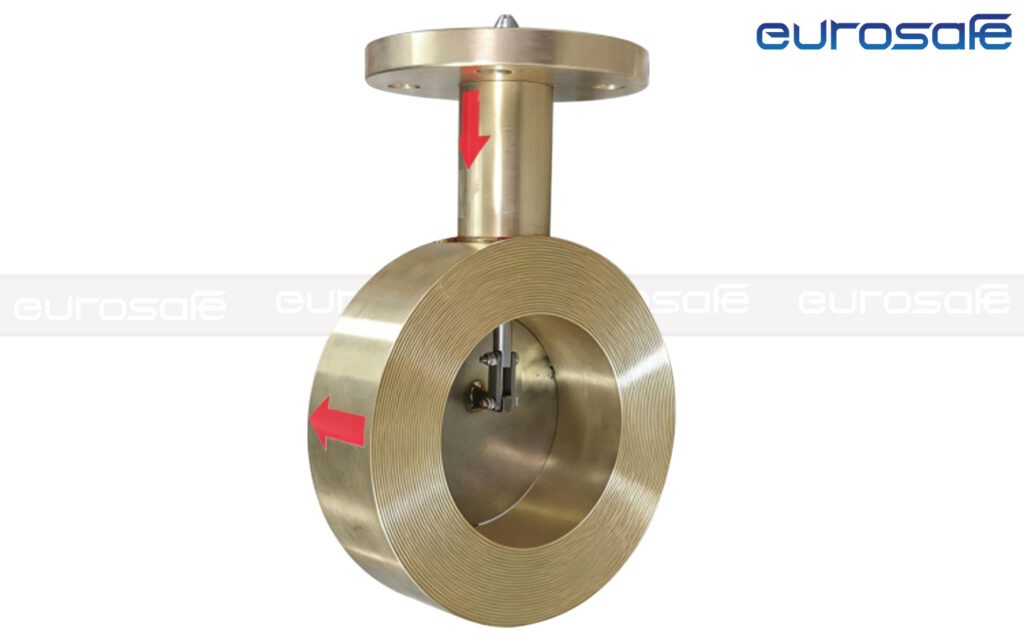

The ES-WRP proportioner is available in diameters (6″) and is capable of correctly mixing foam concentrate at flow rates ranging from 95 LPM (25 GPM) to 11356 LPM (3000GPM)
This proportioner is particularly suitable for applications with closed-head foam/water sprinkler systems, where the initial flow rate may be low and progressively increase as additional sprinklers are activated.
Deluge systems with variable flow rates due to multiple piping lines fed by the same proportioning system.
Foam/water closed-head sprinkler systems, including warehouses, chemical processing facilities, loading/unloading areas, and in general, any area where flammable liquids are present.
The ES-WRP proportioner is compatible with fluorine-free concentrates. For more detailed information, please contact the company.
When installed in a wet sprinkler system with closed-head sprinklers, the ES-WRP proportioner operates as follows:
As additional sprinkler heads open, the increasing water flow causes the deflector to gradually open. This movement larges the orifice section in the dosing channel, allowing a greater amount of foam concentrate to enter the water stream. This feature enables the proportioner to accurately dose foam at both very low and very high flow rates.
To ensure proper operation of the proportioner, a straight pipe section equal to at least five nominal diameters must be provided both upstream and downstream of the unit.

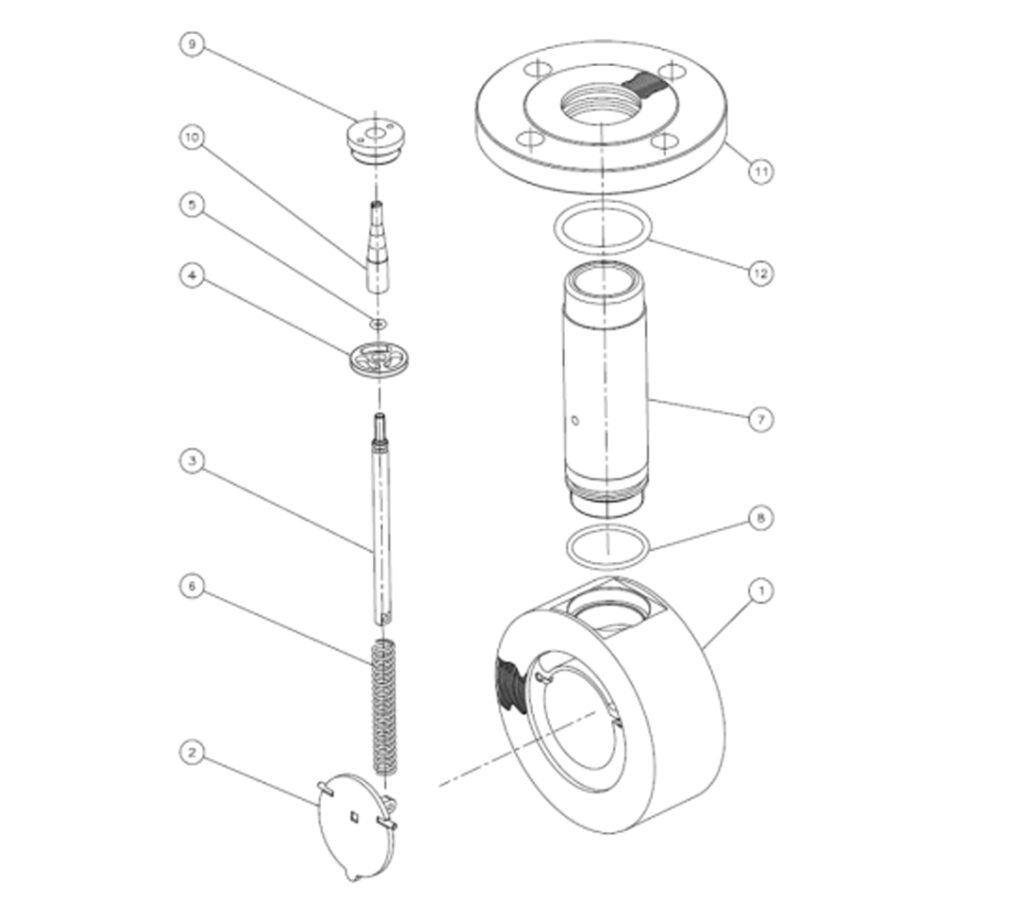

| Item | Component | Material | Item | Component | Material |
|---|---|---|---|---|---|
| 1 | Body | Bronze | 7 | Diffuser tube | Bronze |
| 2 | Deflector | St. steel | 8 | Gasket O-ring | Rubber |
| 3 | Shaft | St. steel | 9 | Calibrated orifice | St. steel |
| 4 | Centering hole | St. steel | 10 | Ogive | St. steel |
| 5 | Gasket O-ring | Rubber | 11 | Foam connection | Bronze |
| 6 | Spring | St. steel | 12 | Gasket O-ring | Rubber |
