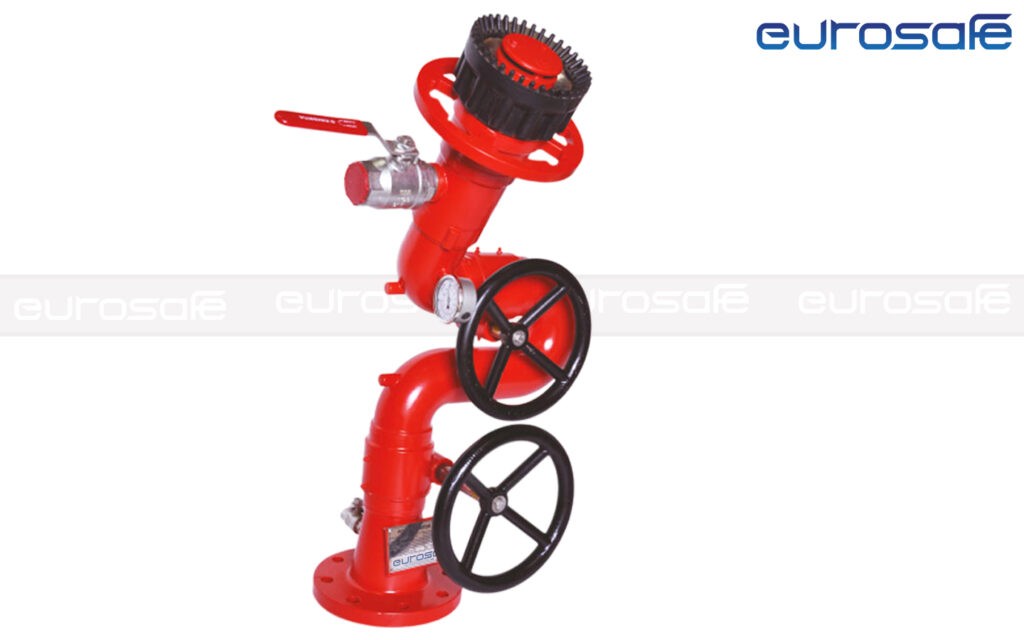

MANUAL FIRE WATER MONITOR ES0304 ES80SH

Water Foam Monitor, WATER MONITOR, FIRE WATER MONITOR,PORTABLE FIRE WATER MONITOR, AUTOMATIC WATER CANNON, MONITOR,PORTABLE MONITOR,WATER CANNON

Description

A Manual Fire Water Monitor, also known as a “fire monitor ” is an equipment used in industrial fire protection systems. It is specifically designed to deliver an amount of water or firefighting foam over a distance. This provides firefighters, with a tool to tackle fires that’re difficult to access or pose significant risks if approached closely. It’s Designed as per NFPA Standard.

Features

  • 304 Stainless Steel construction
  • Flow Rate: 80 LPS (Automatic Nozzle)
  • Jetting Pattern: Straight stream, Fog;
  • 360° rotation horizontally;
  • -45° to +90° elevate vertically;
  • Flange standard: BS4504, ANSI150, GB, etc.

Technical Parameter

Model Number ES0304 ES80SH
Flow Rate 4800 LPM Automatic Nozzle
Working Pressure 10 Bar
Max. Reach @ 10 bar 80 meters @ 4800 LPM
Max. Fog Angle 120°
Max Range Of Monitor -45° to +90° Vertically, 360° Rotation
Waterway Size 2.5”(65mm)
Monitor Outlet 2.5” (65mm) NH male thread
Monitor Inlet Flange 4” BS4504 is standard, other standard flange is available
Material Monitor - SS304 stainless steel
Nozzle & Hand wheel - Aluminum alloy
Download Datasheet

More Products

You might also be interested in these Products

Previous
Next
MANUAL FIRE WATER MONITOR
11 MANUAL FIRE WATER MONITOR stainless steel INDIVIDUAL POST PAGE

A Manual Fire Water Monitor, also known as a “fire monitor ” is an equipment used in industrial fire protection systems. It is specifically designed to deliver an amount of water or firefighting foam over a distance. This provides firefighters, with a tool to tackle fires that’re difficult to access or pose significant risks if approached closely. It’s Designed as per NFPA Standard.

Product SKU: ESP02-0109

Product Brand: EUROSAFE

Product Currency: USD

Product Price: 300

Price Valid Until: 2024-12-31

Product In-Stock: InStock
