EUROSAFE HIGH PRESSURE WATER MIST Description Page

Description

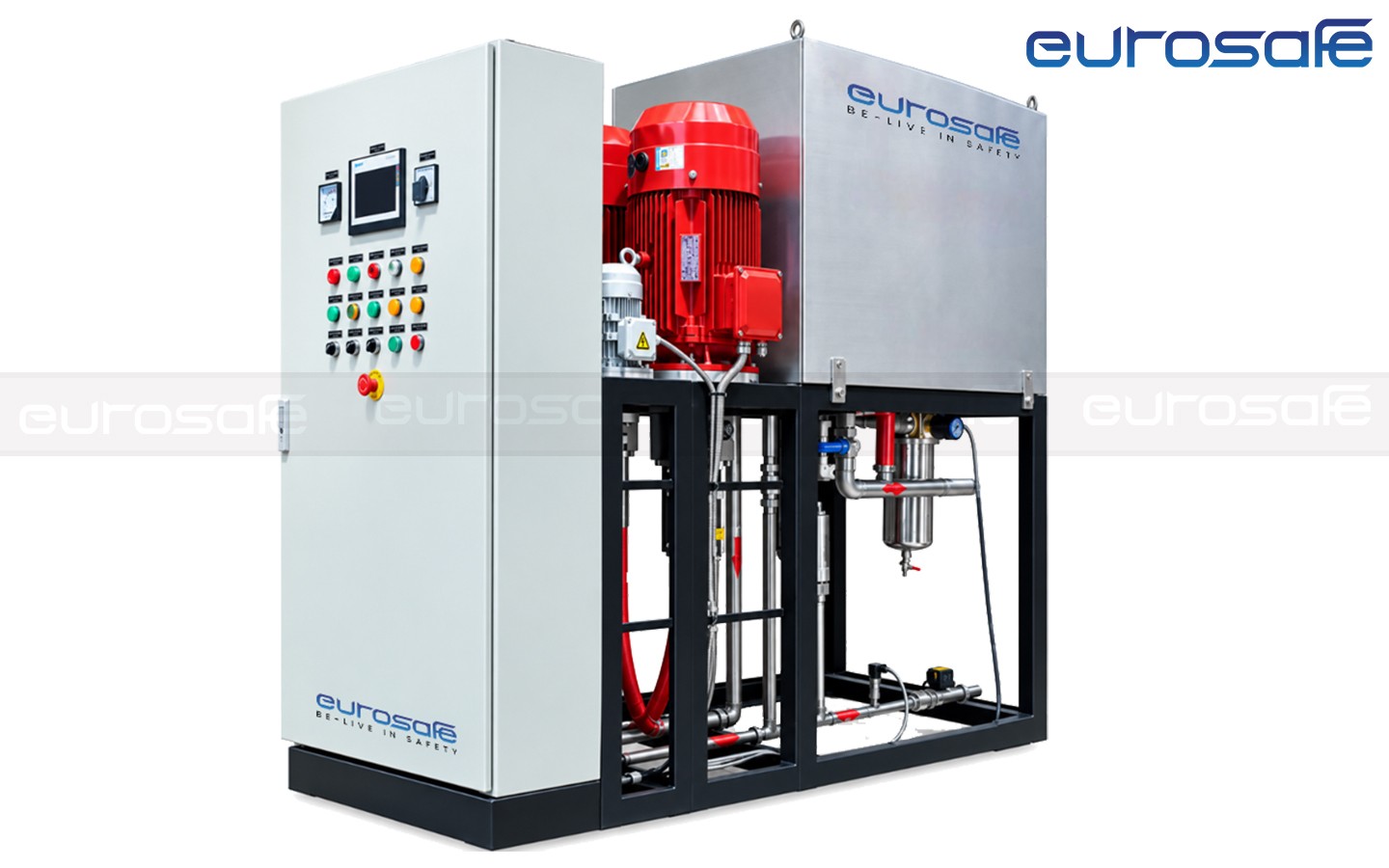

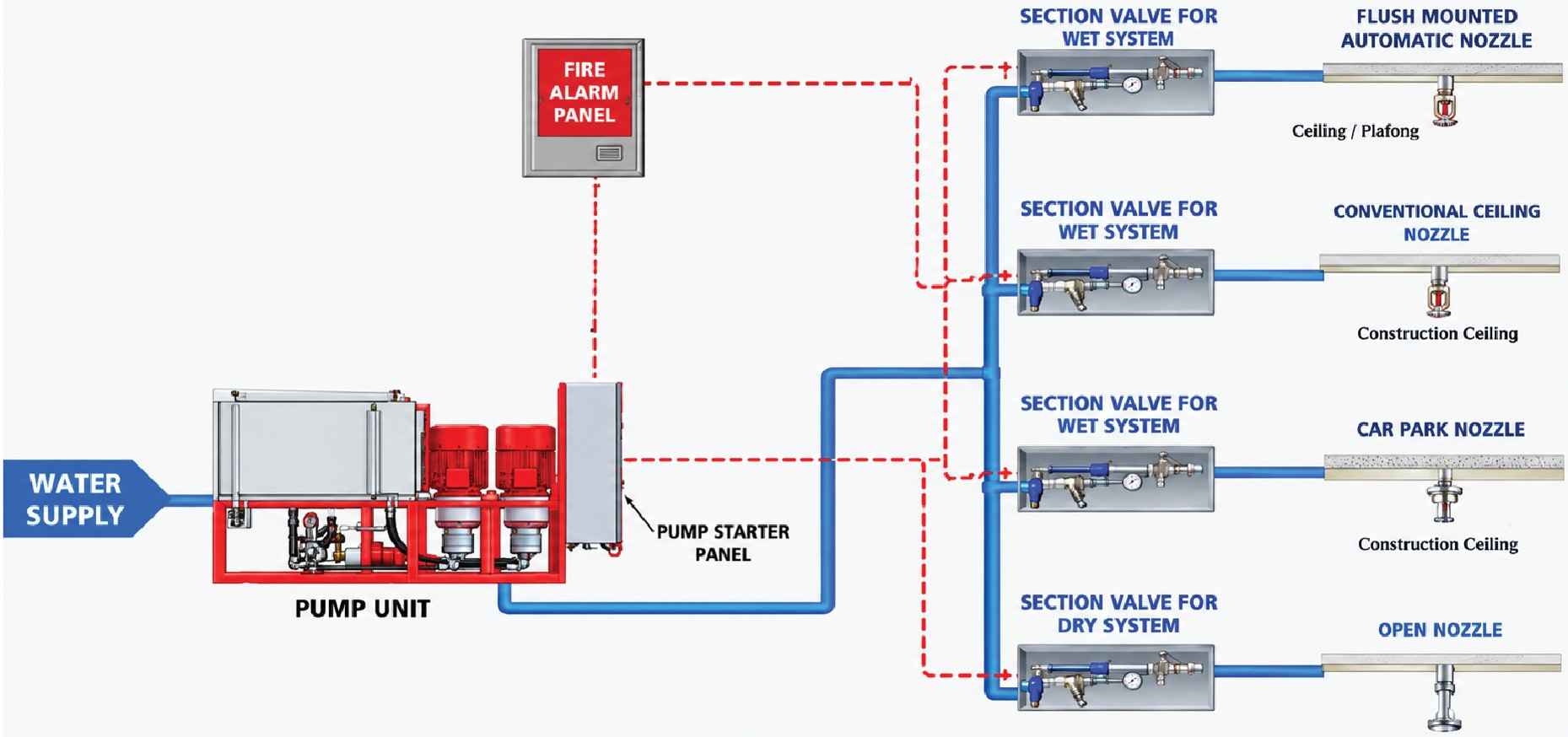

EUROSAFE® is a High-pressure Water Mist Fire Fighting System that uses micro- droplets released through the nozzle into protected areas. Water is discharged in a form that ensures fire suppression, control or extinguish. When water is forced through nozzles at high pressure, a super-fine mist is formed that has a two-fold extinguishing effect. As well as cooling the fire it simultaneously starves the fire of oxygen. This cooling effect also reduces the likelihood of re-ignition. A EUROSAFE® system is comprised of several EUROSAFE® high-pressure water mist nozzles connected by stainless steel piping to a modular EUROSAFE® high-pressure pump unit. Stainless steel EUROSAFE® high-pressure water mist section valves are supplied with the EEUROSAFE® system in order to separate the individual fire sections. The EUROSAFE® pump unit can feed either automatic frangible glass bulb nozzles or open nozzles in “wet”, “pre-action” or “deluge/dry” applications

  • The high-pressure water mist system device uses water as the fire extinguishing medium, and uses a special atomizing nozzle to de-compose the water flow into small water droplets to extinguish the fire under a specific pressure (usually the minimum pressure of the nozzle is 10MPa). With the characteristics of economy and wide application, it has become an important technology to re-place the halon fire extinguishing system, and has a wide application prospect.
  • Fine water mist: sprayed at the minimum working pressure of the nozzle, measured on a plane 1m down from the axis of the nozzle, the water mist with the droplet size Dv0.99 less than 400 μm, and Dv0.50 less than 200μm.

COMPOSITION AND WORKING PRINCIPLE

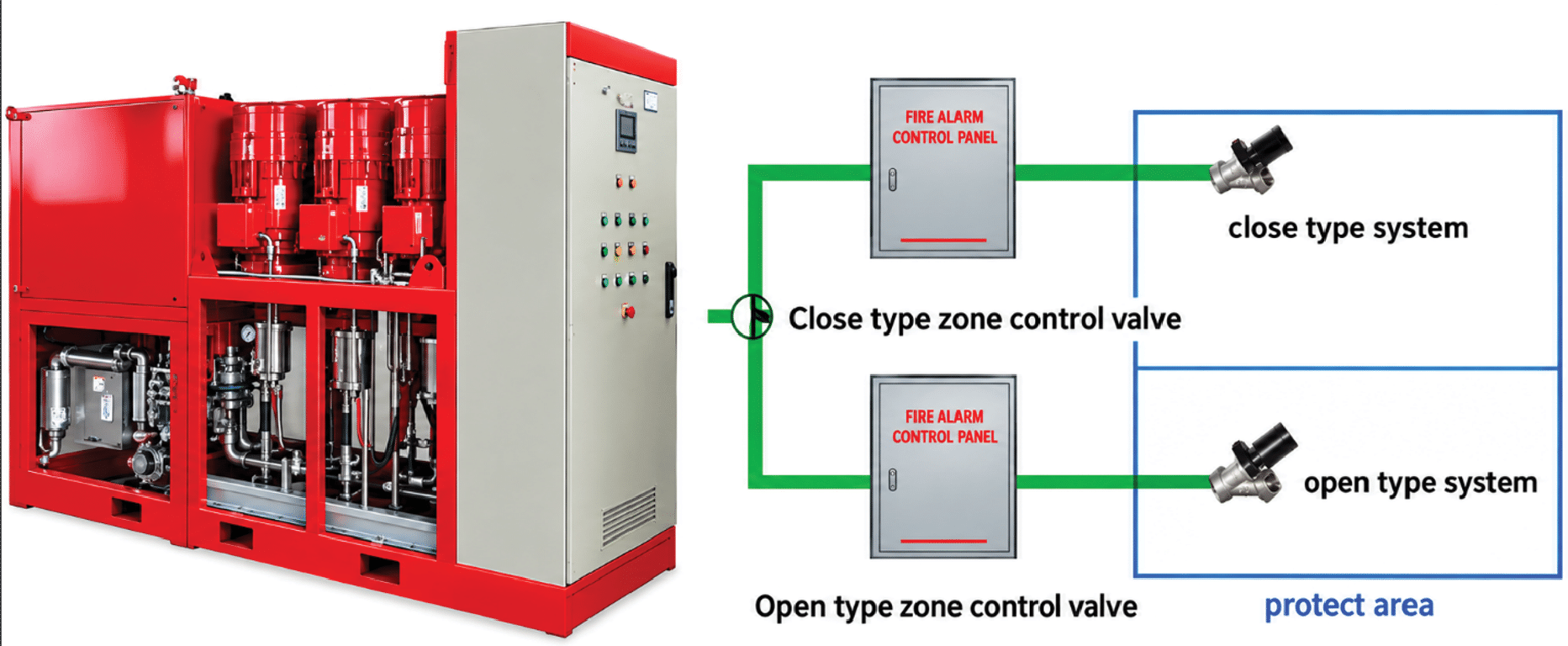

The water mist fire extinguishing device consists of a high-pres-sure water mist special water storage tank, a water mist fire extinguishing device pump unit (including high-pressure main pump, high-pressure backup pump, voltage stabilizer pump, pump unit control cabinet, water inlet solenoid valve, water inlet filter It is composed of water supply system, water supply pipe network, partition control valve box group of water mist fire extinguishing device, water mist sprinkler, high pressure water mist pipeline and fire detection and alarm system. It works as follows:

eurosafe high pressure water mist

Specification

COMPOSITION AND WORKING PRINCIPLE

ES Water Mist System Specifications
Model Flow rate L/min Pressure Mpa Nozzle pressure Mpa System power kW Temperature Standard System type
ESWM-115/14 BA 115 14 210 40 4 °C to 50 °C XF1149-2014 Pump group high pressure open water mist fire extinguishing device
ESWM-230/14 BA 230 14 210 70 4 °C to 50 °C XF1149-2014
ESWM-345/14 BA 345 14 210 100 4 °C to 50 °C XF1149-2014
ESWM-460/14 BA 460 14 210 130 4 °C to 50 °C XF1149-2014
ESWM-575/14 BA 575 14 210 160 4 °C to 50 °C XF1149-2014
ESWM-690/14 BA 690 14 210 190 4 °C to 50 °C XF1149-2014
ESWM-805/14 BA 805 14 210 220 4 °C to 50 °C XF1149-2014
EUROSAFE HIGH PRESSURE WATER MIST Description Page

Specification

ES Water Mist System Installation Requirements
Model Minimum size of pump room Pump room installation layout Water supply requirements
(choose one of two)		 System Drainage
Requirements		 System power Hoisting equipment
Fire fighting poo Municipal water supply
ESWM-115/14 BA Area>20 m2, Height>3m Or provide the size to confirm the design by the manufacturer 200 mm high cement whole board foundation, arranged according to the actual situation on site; or designed by the manufacturer Not less than the water consumption for one fire extinguishing Two independent municipal slave water; each flow is not less than the small rated system flow ≥200L/min Two independent dual power supply AC380V 5T forklift or equivalent lifting capacity lifting equipment
ESWM-230/14 BA
ESWM-345/14 BA
ESWM-460/14 BA
ESWM-575/14 BA
ESWM-690/14 BA
ESWM-805/14 BA

ZONE CONTROL VALVE

ES Table 03 — Technical Parameters
Item Parameters Electric Actuator Item Parameters
Diameter DN15~DN50 Voltage AC220V
Working pressure 14MPa Power 15W
Medium living water opening time 30s
Temperature 4 °C ~50°C Protection class IP65
Pressure range (8~14) MPa Other functions with manual

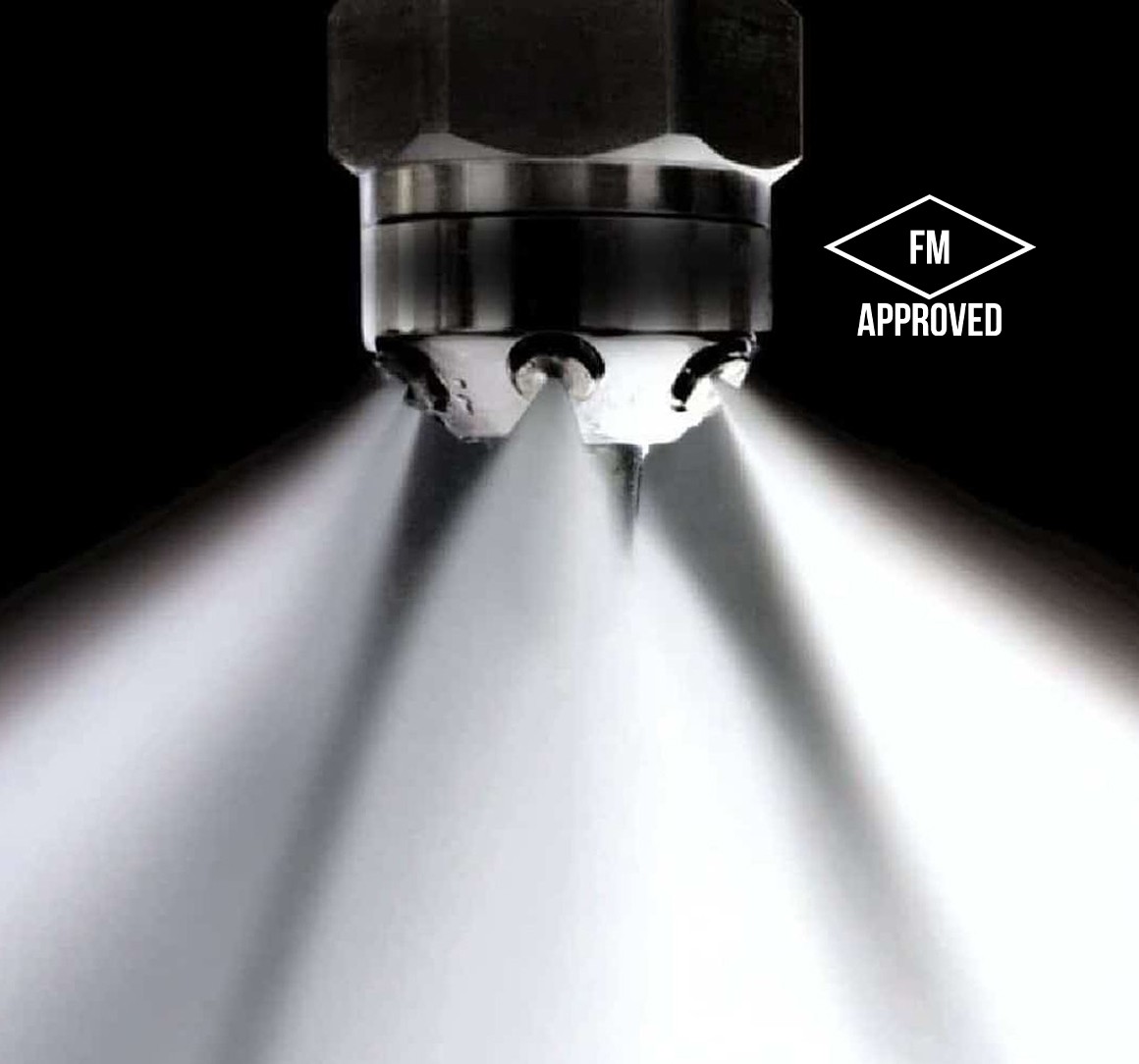

OPEN TYPE NOZZLE

ES Table 04 — Nozzle Specifications
Model Connection
size		 Flow
Coefficient		 Minimum working
pressure Mpa		 Maximum working
pressure Mpa		 Droplet diameter
DV0.9 um
ESWM-T 0.5/10 BA M18X1.5 0.5 10 14 ≤90
ESWM -T 0.7/10 BA 0.7
ESWM -T 1.0/10 BA 1
ESWM -T 1.2/10 BA 1.2
ESWM -T 1.5/10 BA 1.5
ESWM -T 2.0/10 BA 2
ESWM -T 2.5/10 BA 2.5

Warning

  • The pump set and regional valve set should be put into operation only after the commissioning and acceptance and the fire-fighting acceptance are completed.
  • The system maintenance personnel should conduct regular in-section, testing and maintenance of the water mist fire extinguishing system according to the water mist specification and the requirements of this manual to ensure that the system is in good working condition.
  • The operation and management of the system should formulate operation and maintenance procedures, clarify the responsibility of managers, and operators must undergo professional training.
  • Before closing the valve group or detecting the alarm device, the relevant property management unit and fire control center must be notified to ensure that no false alarm will be issued.
  • When the system is closed for maintenance, manual inspection must be carried out on the fire extinguishing area controlled by it, until the system is restored to use after the maintenance is completed.
  • In the maintenance process, if any fault occurs, please carefully check and eliminate the fault, check the possible causes and take measures.

INSTRUCTION MANUAL

This manual is mainly used for the operation and maintenance of our company’s water mist fire extinguishing device. For more de-tailed operation and maintenance instructions, please contact our company. Due to different product technologies in different usage occasions, there may be slight differences in product operation and maintenance. This manual is only for reference, and the specific explanation of the company’s training process shall pre-vail. Please contact our company in time for matters not covered.

EuroSafe_Water_Mist_Fire_Suppression_System

AFTER-SALES SERVICE

Our company’s water mist fire extinguishing system equipment uniformly implements a one-year free warranty. During the warranty period, free maintenance for problems caused by product quality shall be undertaken by our maintenance center. A solution will be given within 24 hours after receiving the user’s fault notification.

Maintenance beyond the warranty period

For products that need to be repaired beyond the warranty period, the company provides spare parts according to the customer’s requirements, and the parts only charge the cost. If the customer cannot eliminate the equipment failure, the company will guide customer online in 48 hours after receiving the customer’s notice. The company can sign a long-term maintenance agreement with the user.
