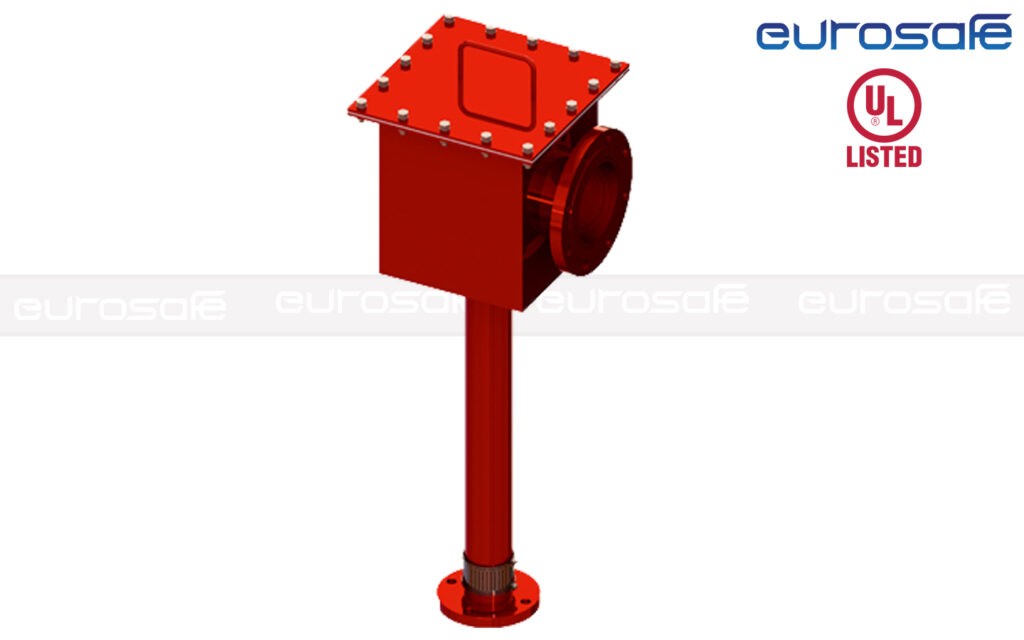

EUROSAFE FOAM CHAMBER

Foam Chamber Fire Suppression Foam Chamber System Design Foam Chamber Applications Foam Chamber for Flammable Liquids Foam Chamber Installation Foam Chamber vs. Sprinkler System Foam Chamber Testing Standards Foam Chamber Activation Methods Foam Chamber Operation Guidelines Foam Chamber Maintenance Foam Chamber Types Foam Chamber Manufacturers Foam Chamber Retrofitting Foam Chamber Expansion Ratio Foam Chamber Flow Rate Foam Chamber Sizing Foam Chamber for Tank Protection Foam Chamber for Petrochemical Plants Foam Chamber for Storage Tanks Foam Chamber Training and Education

Description

Air Foam Chamber is also known as a foam generator and an air foam generator. It is a fire extinguishing device that generates and sprays air foam and is permanently positioned on the oil tank. When the foam-mixed liquid flow from the foam fire truck’s fixed fire pump travels into the generator through the conveying pipeline, air foam is created to extinguish the oil fire.

EUROSAFE low expansion foam chamber is a device used to distribute foam in fire suppression systems. It is often installed on the ceiling or wall and enables the equal distribution of low-expansion foam across a big area. The chamber produces low-expansion foam, which is made up of microscopic bubbles that do not expand substantially in size, reducing the quantity of water required for suppression while yet offering excellent fire protection. The foam is often employed in industrial and commercial situations where flammable liquids or chemicals may be present, such as warehouses and factories. NFPA Approved

Features

  • Expansion: Low-expansion,≥ 5 Times
  • Flange End: ANSI / BS4504 / GB/;
  • Main Material: Carbon Steel;
  • Installation Type: Vertical Installation;
  • Working Pressure Range: 0.3-0.7Mpa;
  • Rated Working Pressure: 0.5Mpa;
  • 25% Liquid Drain Time : ≥ 120 s;
  • Surface Finishing: Epoxy Fire Red.

SPECIFICATION

Model NumberDescriptionFlow RateInlet SizeOutlet Size
ES0303-F4Low Expansion, Vertical240 LPM50mm (2'')80mm(3'')
ES0303-F8Low Expansion, Vertical480 LPM65mm (2.5'')100mm (4''）
ES0303-F16Low Expansion, Vertical960 LPM80mm(3'')150mm (6'')
ES0303-F24Low Expansion, Vertical1440 LPM100mm (4''）200mm (8'')
  • Another flow rate is available, contact us for more.
Download Datasheet

More Products

You might also be interested in these Products

Previous
Next
EUROSAFE FOAM CHAMBER
04 EUROSAFE FOAM CHAMBER INDIVIDUAL POST PAGE

Air Foam Chamber is also known as a foam generator and an air foam generator. It is a fire extinguishing device that generates and sprays air foam and is permanently positioned on the oil tank. When the foam-mixed liquid flow from the foam fire truck’s fixed fire pump travels into the generator through the conveying pipeline, air foam is created to extinguish the oil fire. EUROSAFE low expansion foam chamber is a device used to distribute foam in fire suppression systems. It is often installed on the ceiling or wall and enables the equal distribution of low-expansion foam across a big area. The chamber produces low-expansion foam, which is made up of microscopic bubbles that do not expand substantially in size, reducing the quantity of water required for suppression while yet offering excellent fire protection. The foam is often employed in industrial and commercial situations where flammable liquids or chemicals may be present, such as warehouses and factories. NFPA Approved

Product SKU: ESP01-0104

Product Brand: EUROSAFE

Product Currency: USD

Product Price: 300

Price Valid Until: 2024-12-31

Product In-Stock: InStock
