EUROSAFE INLINE BALANCE PRESSURE PROPORTIONER

Inline Balanced Pressure Proportioner Foam Proportioning Inline System Inline Proportioning Technology Inline Proportioner Operation Inline Balance Pressure System Inline Foam Mixing Equipment Inline Foam Proportioner Installation Inline Proportioner Applications Inline Proportioner Maintenance Inline Proportioner Calibration Inline Proportioner Flow Control Inline Proportioner Accuracy Inline Proportioner Testing Inline Proportioner Benefits Inline Proportioner Types Inline Proportioner Components Inline Proportioner Integration Inline Proportioner Standards Inline Proportioner Manufacturers Inline Proportioner Troubleshooting

Description

With a positive displacement foam concentrate supply pump, an inline balance pressure foam proportioner (ILBP) is employed. Over a wide range of flow rate and pressure, the system regulates the correct discharge of foam concentrate into the water stream.

ILBP is utilized to operate several foam injections at the same time, even if the pressures between the injection spots varied, using a single concentrate supply line. Inline balancing pressure proportioners of various sizes can be coupled to meet the flow requirements of each hazard location.

Features

  • Bronze or Stainless-steel material with Stainless Steel trims
  • 65, 80,100, 150 &200 mm size (2½”, 3", 4", 6" & 8") with flow ranging from 180 to 17400 lpm
  • Working pressure 2.8 to 14 bar (40 to 200 psi)
  • NFPA Compliance

Specifications

A single positive displacement foam concentrate supply pump, an atmospheric foam concentrate storage tank, an inline balance pressure foam proportioner, and a foam concentrate regulating valve comprise the Inline Balance Pressure Foam Proportioning System. The pressure regulating valve is installed on the foam concentrate return line to the storage tank. The valve controls the pressure of the foam concentrate supply. A ratio controller, diaphragm-operated pressure balancing valve, duplex pressure gauge and pressure sensing hose of teflon tube with stainless steel braided cover, interconnecting trim fittings with different control and flush valves comprise the Inline balance pressure proportioner.

Applications

With a positive displacement foam concentrate supply pump, the Inline Balance Pressure Foam Proportioner is employed. The system regulates the precise flow of foam concentrate into the water stream across a wide range of flow rate and pressure.

The Inline Balance Pressure Foam Proportioning System is used to operate many foam injections at the same time, even if the pressures between the injection points varied, using a single concentrate supply line. Inline balancing pressure proportioners of various sizes can be coupled to meet the flow requirements of each hazard location.

Download Datasheet

More Products

You might also be interested in these Products

Previous
Next
Inline Balanced Pressure Proportioner

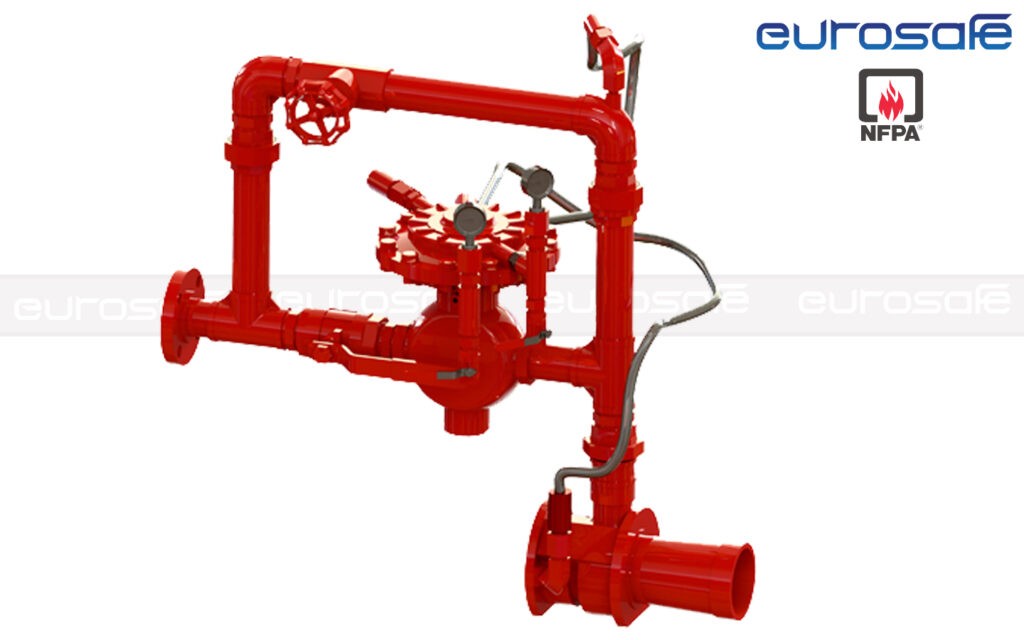

07 EUROSAFE INLINE BALANCE PRESSURE PROPORTIONE INDIVIDUAL POST PAGER

With a positive displacement foam concentrate supply pump, an inline balance pressure foam proportioner (ILBP) is employed. Over a wide range of flow rate and pressure, the system regulates the correct discharge of foam concentrate into the water stream. ILBP is utilized to operate several foam injections at the same time, even if the pressures between the injection spots varied, using a single concentrate supply line. Inline balancing pressure proportioners of various sizes can be coupled to meet the flow requirements of each hazard location.

Product SKU: ES01-0107

Product Brand: EUROSAFE

Product Currency: USD

Product Price: 100

Price Valid Until: 2025-02-28

Product In-Stock: InStock
