Water Mist Fire Suppression Systems: The Future of Fire Safety

Fire safety technology has evolved significantly over the years, from rudimentary extinguishing methods to advanced automated systems. Among the cutting-edge innovations in this field, **water mist fire suppression systems** stand out as an efficient, eco-friendly, and versatile solution for combating fires. This blog explores the technology, applications, advantages, and considerations of water mist systems, underscoring their growing importance in modern fire safety.

Understanding Water Mist Technology

A water mist fire suppression system uses fine water droplets—smaller than those produced by traditional sprinkler systems—to extinguish or control fires. The droplets, typically ranging between 50–200 microns in diameter, are generated using specialized nozzles that atomize water under high pressure. The unique physical properties of water mist make it a highly effective extinguishing agent, as it addresses fires through three primary mechanisms:

1. Cooling: The fine mist rapidly absorbs heat from the fire, lowering the temperature and reducing its intensity.

2. Oxygen Displacement: The mist generates steam upon contact with the fire, displacing oxygen around the flames, which inhibits combustion.

3. Radiant Heat Blockage: The mist creates a fog that blocks radiant heat transfer, preventing the fire from spreading.

By attacking fires from multiple angles, water mist systems offer an effective and comprehensive fire suppression solution.

Components of a Water Mist System

A typical water mist system consists of the following components:

1. Water Supply: This can be a dedicated water tank, municipal water supply, or even seawater in certain cases.

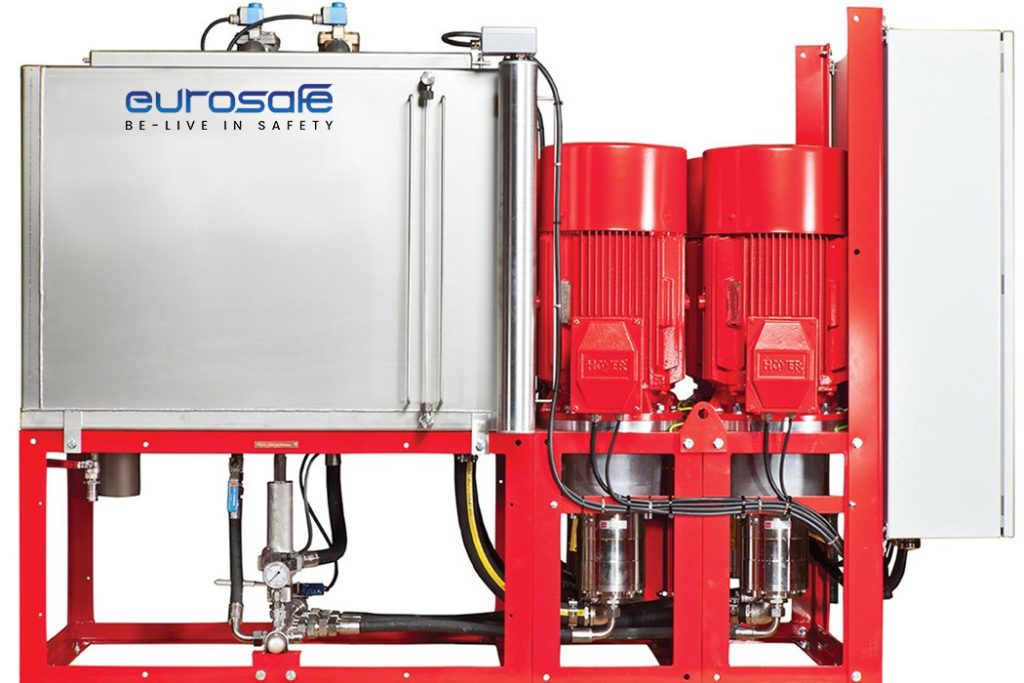

2. High-Pressure Pumps or Gas Cylinders: These provide the necessary pressure to atomize water through the nozzles.

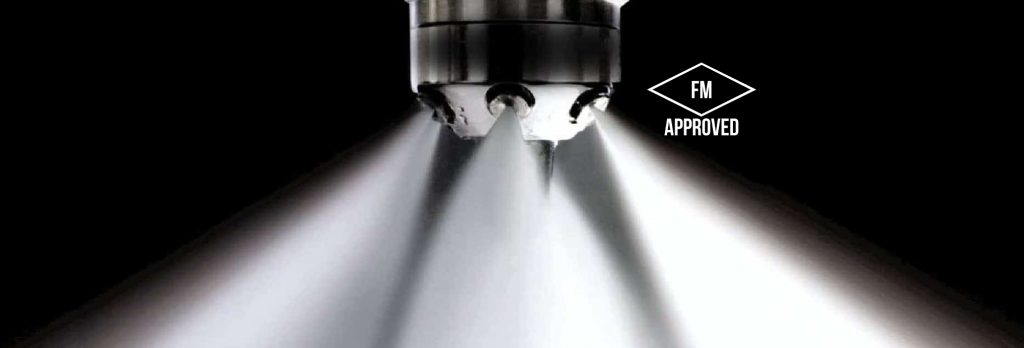

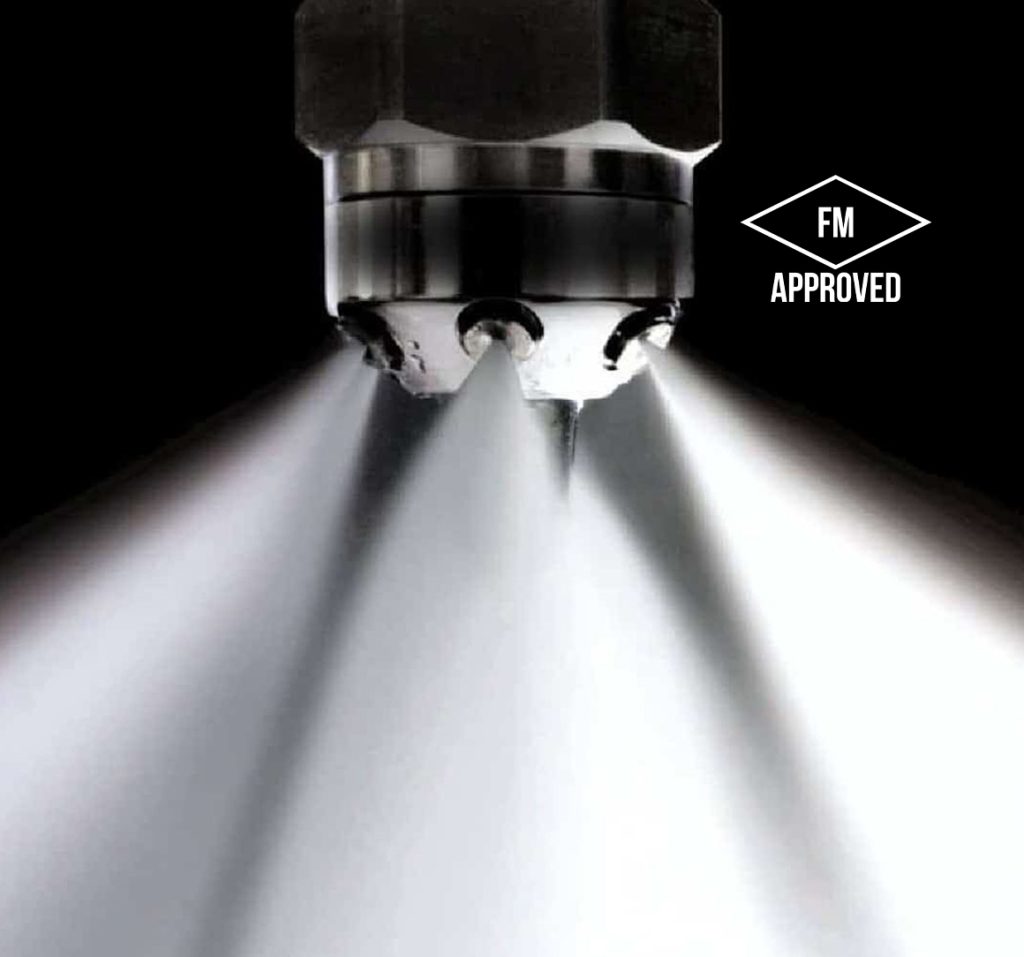

3. Mist Nozzles: The nozzles are designed to produce droplets of a specific size and spray pattern for optimal fire suppression.

4. Piping Network: Stainless steel or corrosion-resistant pipes deliver water from the supply to the nozzles.

5. Control Panel: The central unit monitors and manages the system’s activation, ensuring timely and effective response.

How Water Mist Systems Compare to Traditional Sprinklers

While traditional sprinkler systems have been the standard in fire protection for decades, water mist systems offer several advantages:

1. Water Efficiency: Water mist systems use significantly less water than conventional sprinklers—up to 90% less in some cases—making them ideal for environments where water conservation is critical.

2. Enhanced Cooling: The smaller droplets have a larger surface area per unit of water, allowing for faster heat absorption.

3. Reduced Water Damage: Since less water is used, there is minimal risk of water damage to property and sensitive equipment.

4. Eco-Friendliness: Unlike chemical extinguishing agents, water mist systems are environmentally safe and do not contribute to ozone depletion or greenhouse gas emissions.

Types of Water Mist Systems

Water mist systems are categorized based on their operating pressure and intended applications:

Low-Pressure Systems

Operate at pressures below 12 bar (175 psi).

Typically used in industrial settings, such as machinery spaces and turbines.

Ideal for localized fire suppression.

Medium-Pressure Systems

Operate at pressures between 12–35 bar (175–500 psi).

Suitable for applications requiring more extensive coverage, such as hotel rooms and data centers.

High-Pressure Systems

Operate at pressures above 35 bar (500 psi).

Offer superior fire suppression capabilities in large or complex spaces like airports, ships, and historic buildings.

Each type of system is tailored to specific needs, ensuring optimal performance across various scenarios.

Applications of Water Mist Fire Suppression Systems

The versatility of water mist systems makes them suitable for a wide range of applications, including:

Industrial Settings

– Protects machinery and equipment from fire without causing water damage.

– Common in oil refineries, power plants, and manufacturing facilities.

Marine Industry

– Widely used on ships to protect engine rooms, cargo holds, and passenger areas.

– Effective against fires involving flammable liquids.

Data Centers and IT Facilities

– Provides fire suppression without damaging sensitive electronic equipment.

– A preferred choice for protecting server rooms and control centers.

Healthcare Facilities

– Ensures patient safety and minimizes water damage to medical equipment.

– Used in hospitals, laboratories, and pharmaceutical facilities.

Heritage and Cultural Sites

– Preserves priceless artifacts and structures by using minimal water.

– Ideal for museums, libraries, and historic buildings.

Transportation

– Applied in railways, buses, and aircraft to combat fire hazards efficiently.

– Ensures passenger safety with minimal disruption.

Advantages of Water Mist Fire Suppression Systems

The growing popularity of water mist systems can be attributed to their numerous benefits:

Rapid Fire Suppression

– The fine mist quickly cools the fire and displaces oxygen, ensuring rapid suppression.

Minimal Environmental Impact

– Water mist systems are eco-friendly, using only water as the extinguishing agent.

Reduced Risk of Damage

– With minimal water usage, the risk of damage to property and equipment is significantly reduced.

Versatility

– Suitable for diverse fire classes (A, B, C, and F), making them a versatile choice for multiple applications.

Space-Saving Design

– Compact components and reduced water requirements allow for easy installation in confined spaces.

Compliance with Standards

– Many water mist systems meet international fire safety standards, such as NFPA 750 and EN 14972.

Challenges and Considerations

While water mist systems offer numerous advantages, certain challenges must be addressed for their effective implementation:

1. Initial Cost: The installation of water mist systems can be more expensive than traditional sprinkler systems due to advanced technology and specialized components.

2. System Design: Proper design and engineering are crucial to ensure effective coverage and performance.

3. Maintenance: Regular maintenance and testing are required to keep the system in optimal condition.

4. Compatibility: In some scenarios, water mist may not be suitable for specific fire risks, such as fires involving highly reactive chemicals.

Despite these challenges, the long-term benefits often outweigh the initial investments, making water mist systems a worthwhile choice for many facilities.

Case Studies: Water Mist Systems in Action

1. The Louvre Museum, France: The Louvre Museum installed a high-pressure water mist system to protect its priceless art collections and historic architecture. The system provides effective fire suppression without risking water damage to delicate exhibits.

2. Royal Caribbean’s Quantum of the Seas: This cruise ship employs a water mist system to safeguard passengers and crew from fire hazards. The system’s ability to use seawater enhances its sustainability and operational efficiency.

3. Data Center in Singapore: A leading tech company in Singapore implemented a water mist system to protect its data center. The system’s minimal water usage and rapid response capabilities ensure uninterrupted operations even in the event of a fire.

The Future of Water Mist Technology

As technology advances, water mist fire suppression systems are becoming increasingly sophisticated. Innovations include:

Smart Integration: Systems equipped with IoT-enabled sensors and AI algorithms for real-time monitoring and predictive maintenance.

Hybrid Systems: Combining water mist with other fire suppression methods, such as inert gas or foam, to address complex fire scenarios.

Improved Accessibility: Efforts to make water mist systems more cost-effective and accessible to smaller businesses and residential properties.

Conclusion

Water mist fire suppression systems represent a significant leap forward in fire safety technology. Their ability to provide rapid, effective, and environmentally friendly fire protection makes them a valuable asset across various industries and applications. While the initial investment may be higher, the long-term benefits of reduced water usage, minimized damage, and enhanced safety make them a compelling choice for modern fire suppression needs.

As industries continue to prioritize sustainability and innovation, water mist systems are poised to play a pivotal role in shaping the future of fire safety. Whether in protecting critical infrastructure, preserving cultural heritage, or safeguarding lives, these systems are a testament to the power of technology in creating a safer world.
