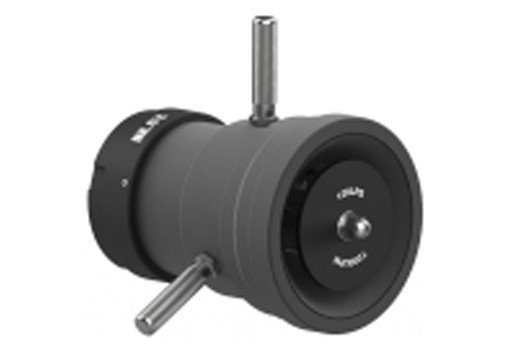

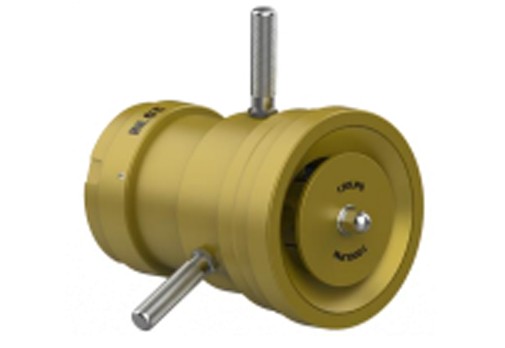

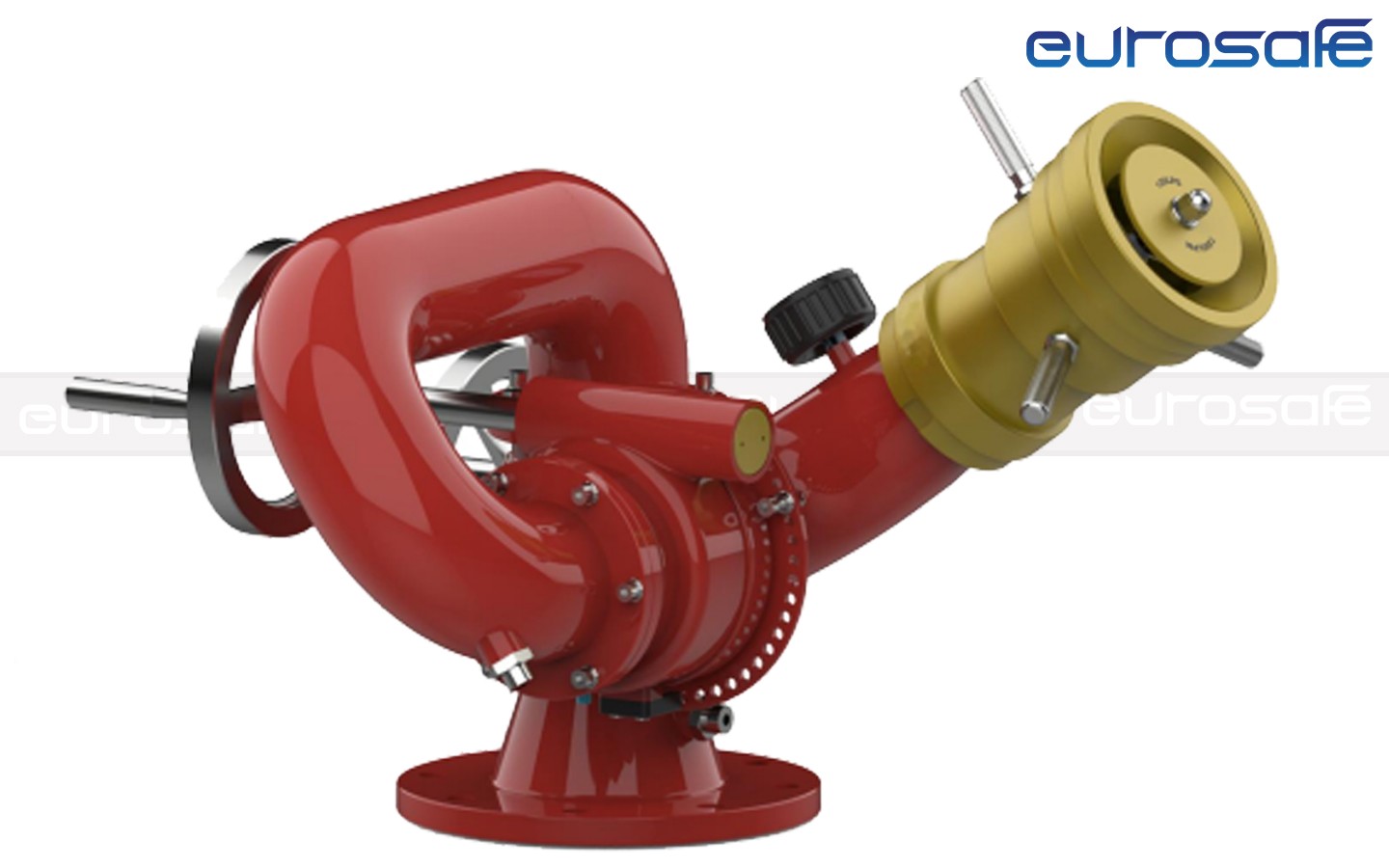

This is a gear control stainless steel monitor with Standard DN100 waterway size to support an Max. Flow rate up to 7200LPM with less turbulence. Full set of monitor assembly are fully enclosed for long service life. It’s designed for rough and high corrosion condition. The monitor can be used with smooth bore, constant flow and flow and foam pipe nozzle. w/o deflector.
| Model Number | ES0304-ES03 |
|---|---|
| Operation Type | Gear Controlled |
| Installation | Flange |
| Flange Inlet | 4Inch, 6 Inch, 8 Inch ANSI, BS, JIS, DIN |
| Waterway Size | DN100 |
| Outlet Size | 3.5” Or 4” NH Male For Choice |
| Max. Flow Rate | 40LPS, 2400LPM. 650GPM@ 8 Bar |
| Horizontal Angle | 360°, Or according to customized request |
| Vertical Angle | -45° to +80°, Or according to customized request |
| Standard Color | RAL 3000 Or Polished Stainless Steel |
