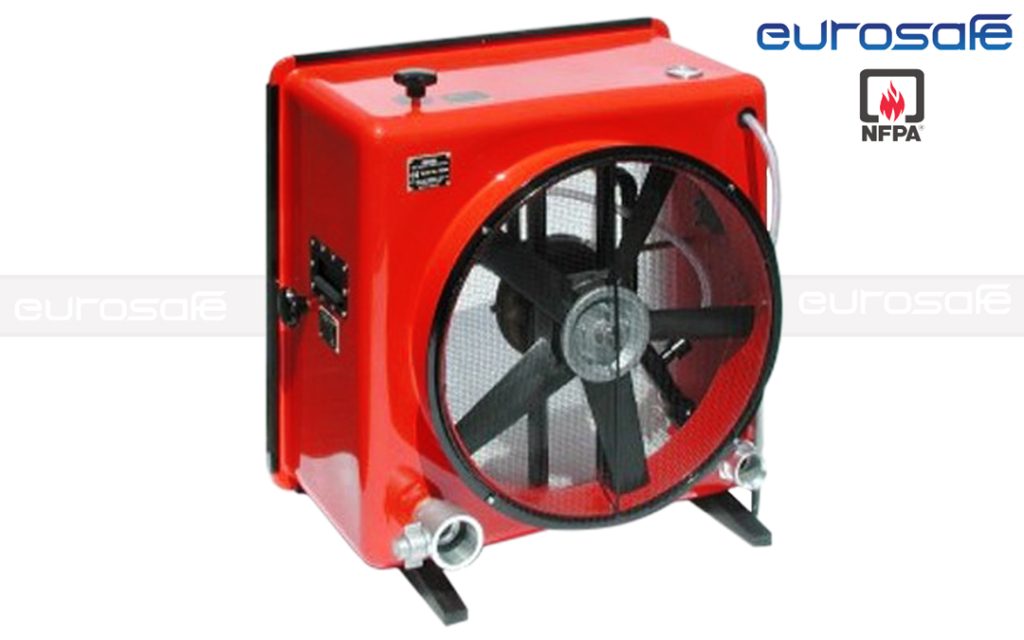

EUROSAFE FOAM GENERATOR

Foam Generator System Foam Generator Types High-Expansion Foam Generators Low-Expansion Foam Generators Foam Generator Applications Foam Generator for Firefighting Foam Generator Design Foam Generator Operation Foam Generator Nozzle Foam Generator Efficiency Foam Generator Flow Rate Foam Generator Activation Foam Generator Installation Foam Generator Maintenance Foam Generator Testing Foam Generator Standards Portable Foam Generators Fixed Foam Generators Foam Generator Safety Foam Generator Benefits

Description

A water turbine powers the EUROSAFE High Expansion Foam Generators. Depending on the solution flow rate and water pressure, they are designed to expand the foam solution with Expansion ratios of up to 800:1. However, the ideal expansion ratio is in the 500:1 to 700:1 range. The High Expansion Foam Generator does not require any additional power sources such as electricity or gasoline engines. They are propelled by a foam solution that powers a hydraulic (water) motor or turbine. The foam solution is expanded by spraying it over a nylon net/stainless steel screen, then an air stream formed by the motor’s fan blasts air through the screen to produce a mass of foam bubbles. The constant flow of the foam solution, along with the passage of air through the screen, will result in vast quantities of completed foam. Portable systems have their own proportioning system, whereas fixed systems must employ the fixed proportioning system.

SPECIFICATION

Generator ModelDescriptionColorWeight (kg)
ES0316 HX-100PPortable with system InductionRed35
ES0316 HX-300P(FRP)Portable with system InductionRed/Yellow65
ES0316 HX-300P(SS)Portable with system InductionRed95
ES0316 HX-300P(SS)Portable with system InductionRed90

More Products

You might also be interested in these Products

EUROSAFE FOAM GENERATOR
13 EUROSAFE FOAM GENERATOR INDIVIDUAL POST PAGE

A water turbine powers the EUROSAFE High Expansion Foam Generators. Depending on the solution flow rate and water pressure, they are designed to expand the foam solution with Expansion ratios of up to 800:1. However, the ideal expansion ratio is in the 500:1 to 700:1 range. The High Expansion Foam Generator does not require any additional power sources such as electricity or gasoline engines. They are propelled by a foam solution that powers a hydraulic (water) motor or turbine. The foam solution is expanded by spraying it over a nylon net/stainless steel screen, then an air stream formed by the motor’s fan blasts air through the screen to produce a mass of foam bubbles. The constant flow of the foam solution, along with the passage of air through the screen, will result in vast quantities of completed foam. Portable systems have their own proportioning system, whereas fixed systems must employ the fixed proportioning system.

Product SKU: ESP01-0113

Product Brand: EUROSAFE

Product Currency: USD

Product Price: 300

Price Valid Until: 2025-01-31

Product In-Stock: InStock
