Name: FOAM RATIO CONTROLLER
Brand: EUROSAFE
SKU: ESP01-0109
Price: 300 USD
Availability: InStock

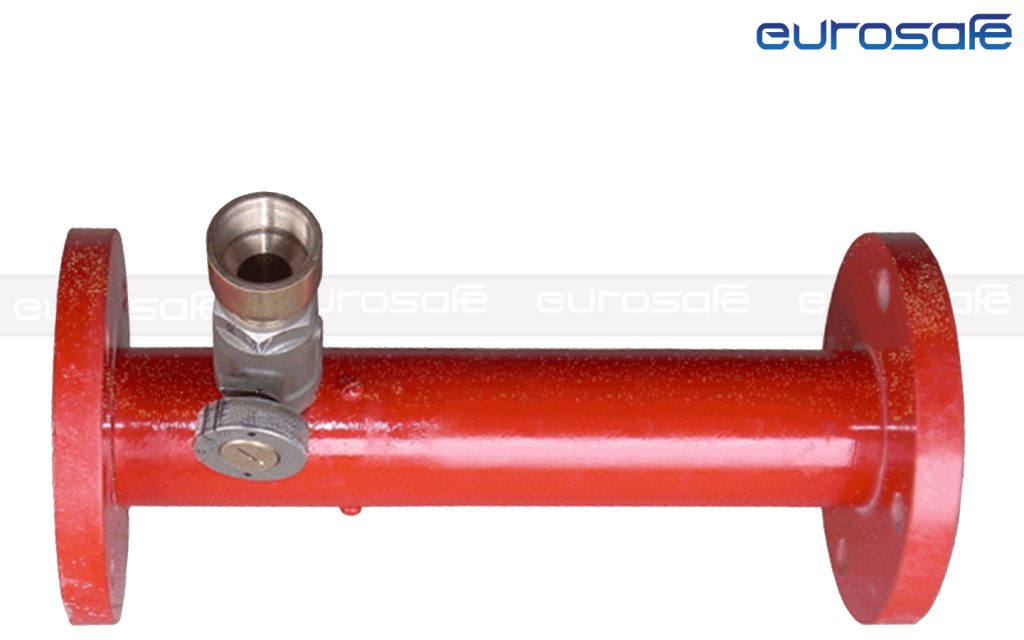

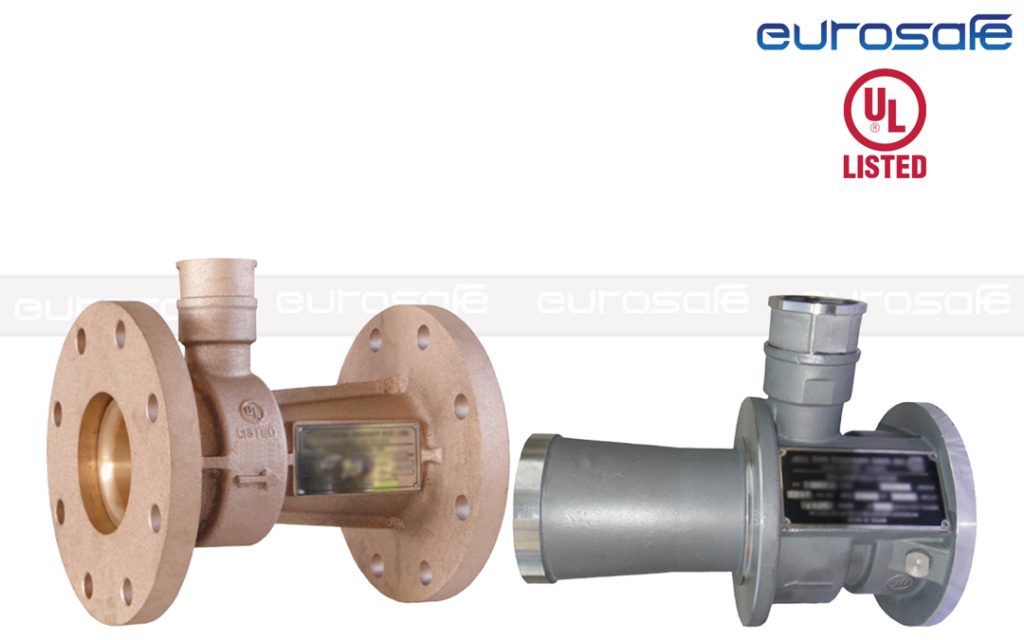

EUROSAFE FOAM RATIO CONTROLLER

The Ratio Controller is a component of the Foam Bladder Tank Proportioning System. It accurately meters foam concentration into the water line, resulting in a high-quality foam solution. The ratio controller is available in stainless steel and bronze finishes. It has a wide range of flow. The Ratio Controller is a component of the Foam Bladder Tank Proportioning System. It accurately meters foam concentration into the water line, resulting in a high-quality foam solution.

A foam monitoring valve to modify the induction rate from 1% to 6%, if specified; otherwise, 3% or 6% as required by the client.
Compatible with all types of foam concentrates
Alignment with the appropriate flow rate of foam manufacturing branch pipes / high expansion foam generators & foam producers.
EUROSAFE inductors can automatically maintain permissible induction accuracy owing to head fluctuation between inductor and branch pipe while remaining under the prescribed limiting back pressure.
Portability and mobility
Low upkeep
Portable and permanent connections are available.

Model	Type	Body	Connection	Color
ES0306-225L	Variable/Fixed	Aluminum Alloy/ Gun Metal/ SS 316	Flange/ Coupling	Red/Yellow
ES0306-400L	Variable/Fixed	Aluminum Alloy/ Gun Metal/ SS 316	Flange/ Coupling	Red/Yellow
ES0306-600L	Variable/Fixed	Aluminum Alloy/ Gun Metal/ SS 316	Flange/ Coupling	Red/Yellow
ES0306-1200L	Variable/Fixed	Aluminum Alloy/ Gun Metal/ SS 316	Flange/ Coupling	Red/Yellow
ES0306-1600L	Variable/Fixed	Aluminum Alloy/ Gun Metal/ SS 316	Flange/ Coupling	Red/Yellow
