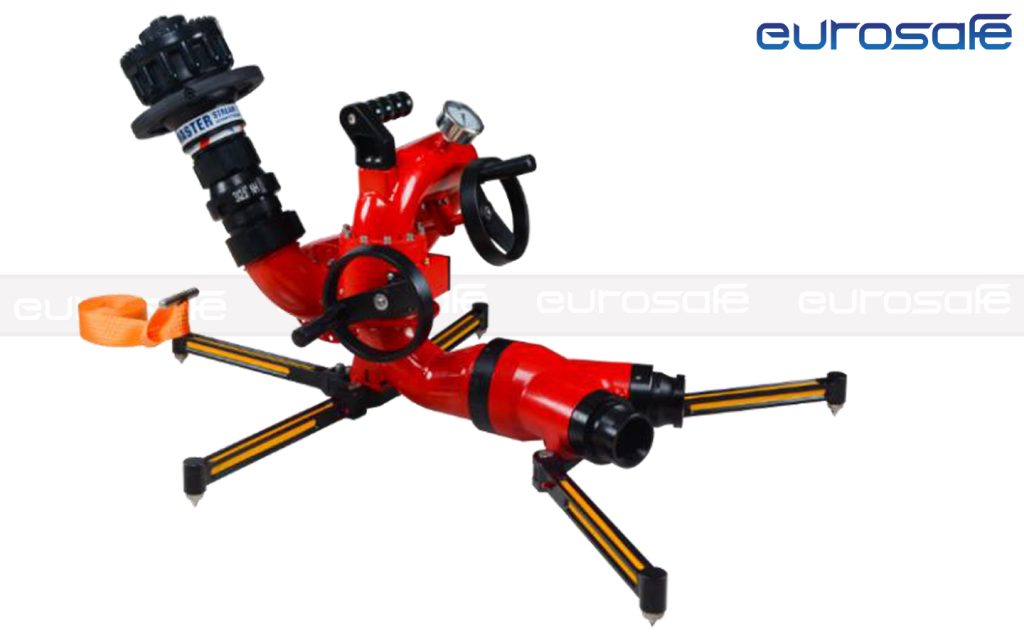

PORTABLE FIRE WATER MONITOR

Description

A Portable Fire Water Monitor is a compact and maneuverable firefighting device designed to deliver a high volume of water or firefighting foam to extinguish fires. Unlike fixed monitors, portable versions can be transported and positioned by hand, making them versatile tools for responding to emergency situations in various environments.

Equipped with a nozzle assembly, the portable monitor allows firefighters to adjust the flow rate, spray pattern, and direction of the water or foam. The nozzle can typically be controlled manually using handwheels or levers, giving firefighters the flexibility to adapt to changing fire conditions.

It’s Designed as per NFPA Standard.

Features

Hard Anodized Aluminum alloy construction
Flow Rate:1200 - 1800 -2400 LPM (Adjustable);
Jetting Pattern: Straight stream, Fog;
20°swing left and right from the center;
+30°to +80°elevate vertically;
Coupling standard: GOST, STORZ, Instantaneous, NH, etc
Weight: Approx. 12 KGS.

Technical Parameter

Model	ES0304 -Y20-40
Working Pressure	10 bar
Flow Rate	1200 -1800-2400 LPM (Adjustable)
Jetting Range @ 10 bar	65 m @ 2400 LPM
Max. Fog Angle	120°
Swing Horizontally	20° swing left and right from the center
Elevate Vertically	+30° to +80°
Water Way Size	2.5”
Inlet	2.5” GOST, STORZ, Instantaneous, NH, etc. (Optional)
Outlet	2.5” NH
