Modular Type Fire Extinguishing System

Modular type fire extinguisher

Ceiling/Wall Mounted Style

A Modular Type Fire Extinguishing System is an advanced fire protection solution that offers flexibility, efficiency, and tailored fire suppression for a variety of environments. This system comprises distinct modules, each designed to address specific fire risks. These modules can include detection, control, suppression, and alarm components. The key feature of this system is its adaptability, as modules can be combined and configured to suit the unique needs of different spaces, equipment, and potential fire hazards.
It’s Designed as per NFPA Standard.

Modular Type Fire Extinguishing System Ceiling Mounted Style

THERMAL SENSOR CONTROLLED

No	Specifications	Parameters
1	Tank size	6, 8 , 10, 16, 20, 30 Ltr
2	Discharge time	≤10s
3	Maximum filling Density	1 kg/L
4	Activating Temperature	68°C
5	Ambient Torking Temperature	0°C~50°C

Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.

Device Model	Filling Amount (kg)	Maximum Working Pressure (Mpa)	Storage Pressure (Mpa)	Maximum Coverage (m3)	Starting Mode
EN0806-MW6/1.6	6	2.5	1.6	9.20	Temperature Sensor Activating Temperature : 68°C
EN0806-MW8/1.6	8	2.5	1.6	11.11
EN0806-MW10/1.6	10	2.5	1.6	13.89
EN0806-MW16/1.6	16	2.5	1.6	22.22
EN0806-MW20/1.6	20	2.5	1.6	27.78
EN0806-MW30/1.6	30	2.5	1.6	41.67

COMPOSITION

One spherical pressure tank, fire extinguishing agent (HFC-227ea, same as FM200), hanging mounting, thermal sensor (one little glass tube filled with liquid whose volume will be changed by temperature)

MIMIC DIAGRAM

WALL MOUNTED STYLE

ELECTROMAGNETIC-CONTROLLED

No	Specifications	Parameters
1	Tank size	16, 20, 30 Ltr
2	Discharge time	≤8s
3	Maximum filling Density	1 kg/L
4	Device starting power	DC24V/1.6A

Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.

Device Model	Filling Amount (kg)	Maximum Working Pressure (Mpa)	Storage Pressure (Mpa)	Maximum Coverage (m3)	Starting Mode
EN0806-MC16/1.6	16	2.5	1.6	22.22	Solenoid Actuator Starting power:DC24V/1.6A
EN0806-MC20/1.6	20	2.5	1.6	27.78
EN0806-MC30/1.6	30	2.5	1.6	41.67

COMPOSITION

One spherical pressure tank, fire extinguishing agent (HFC-227ea, same as FM200), hanging mounting, thermal sensor (one little glass tube filled with liquid whose volume will be changed by temperature), pressure switch, stainless steel pipe and nozzle.

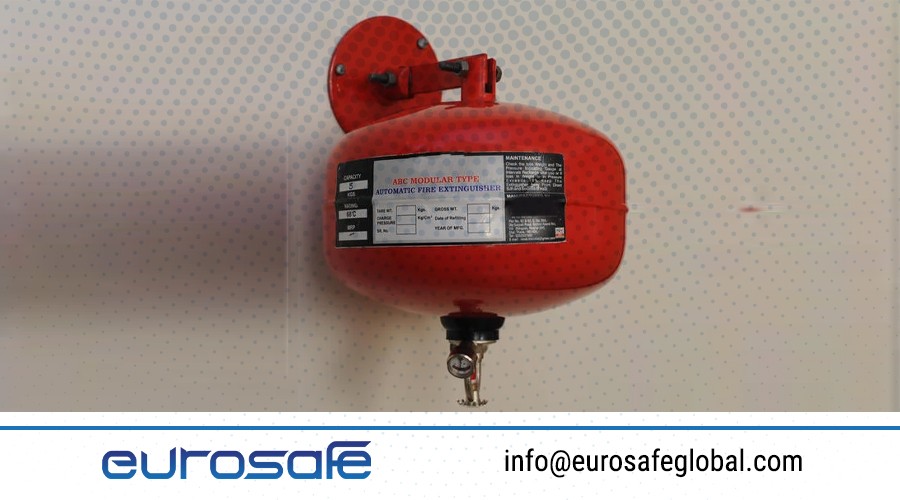

Modular type fire extinguisher

Ceiling/Wall Mounted Style

Modular Type Fire Extinguishing System Ceiling Mounted Style

THERMAL SENSOR CONTROLLED

Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.

COMPOSITION

One spherical pressure tank, fire extinguishing agent (HFC-227ea, same as FM200), hanging mounting, thermal sensor (one little glass tube filled with liquid whose volume will be changed by temperature)

MIMIC DIAGRAM

WALL MOUNTED STYLE

ELECTROMAGNETIC-CONTROLLED

Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.

COMPOSITION

One spherical pressure tank, fire extinguishing agent (HFC-227ea, same as FM200), hanging mounting, thermal sensor (one little glass tube filled with liquid whose volume will be changed by temperature), pressure switch, stainless steel pipe and nozzle.

ADVANTAGES OF HFC227 MODULAR TYPE EXTINGUISHERS

Though automatic FM200 fire extinguisher - ceiling mounted style has two kinds of system, but their advantages are the same as followings:
