Mechanical foam proportioner

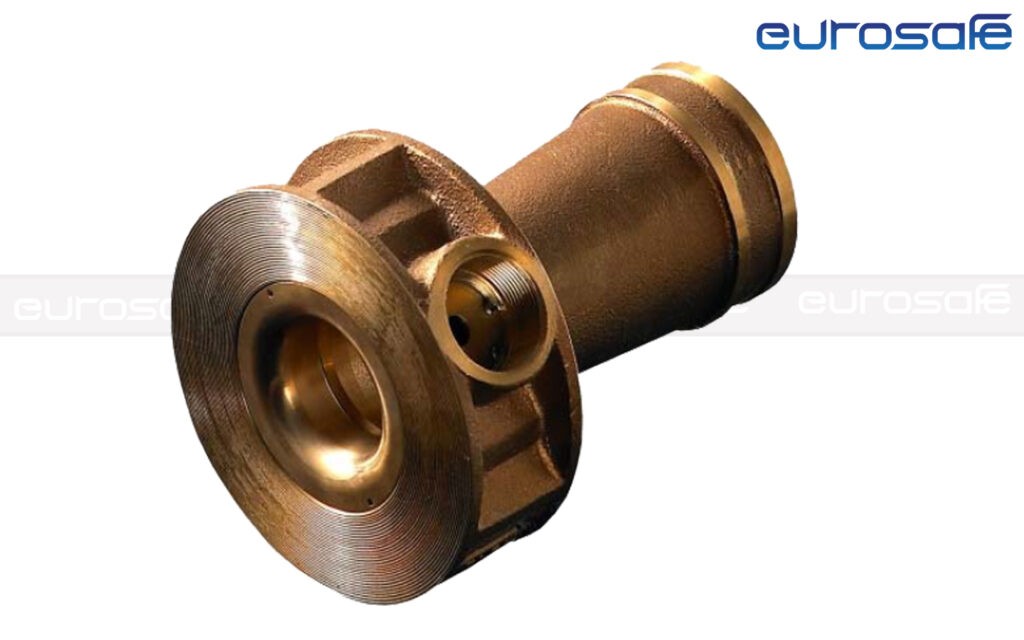

eurosafe Mechanical Foam Proportioner individual

Description

EUROSAFE Pressure Proportioner is for use in fixed systems to introduce designed foam concentrate at a predetermined rate into the fire-water supply, over a varying range of foam solution demands. For example, where a number of discharge outlets may be required to operate individually or simultaneously. There are 5 basic models with capacities from 40 GPM to 2400 GPM and each unit is factory-calibrated to suit proportioning rates of 2% or 3% or 6% of a specified foam concentrate.

Size 2.5″ proportioner shall be threaded type and the other sizes are wafer type. The wafer type, designed to be installed between ANSI 150 flanges and are manufactured from high grade corrosion resistant materials. They are simple to install, require no maintenance and their modular construction gives the engineer considerable flexibility in terms of selection of flow rate and positioning within the system.

Description

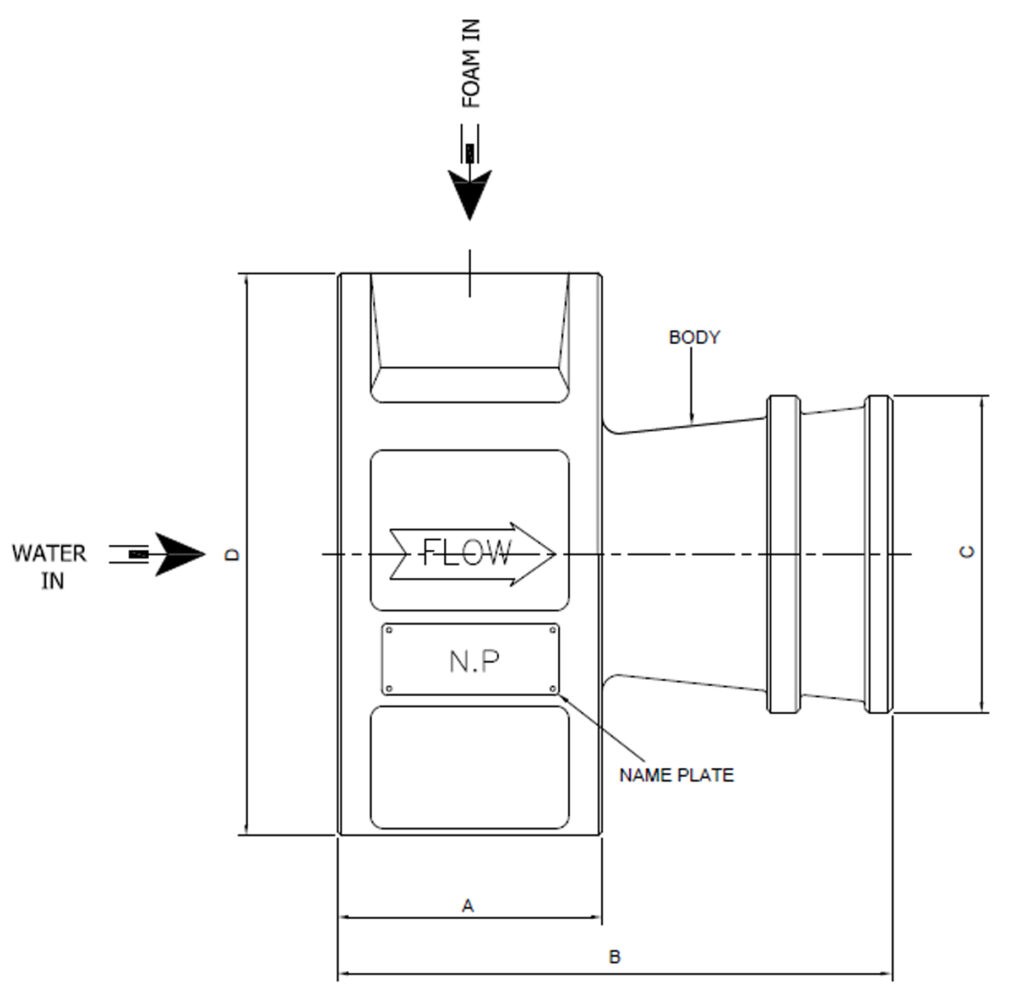

eurosafe Mechanical Foam Proportioner Drawing
