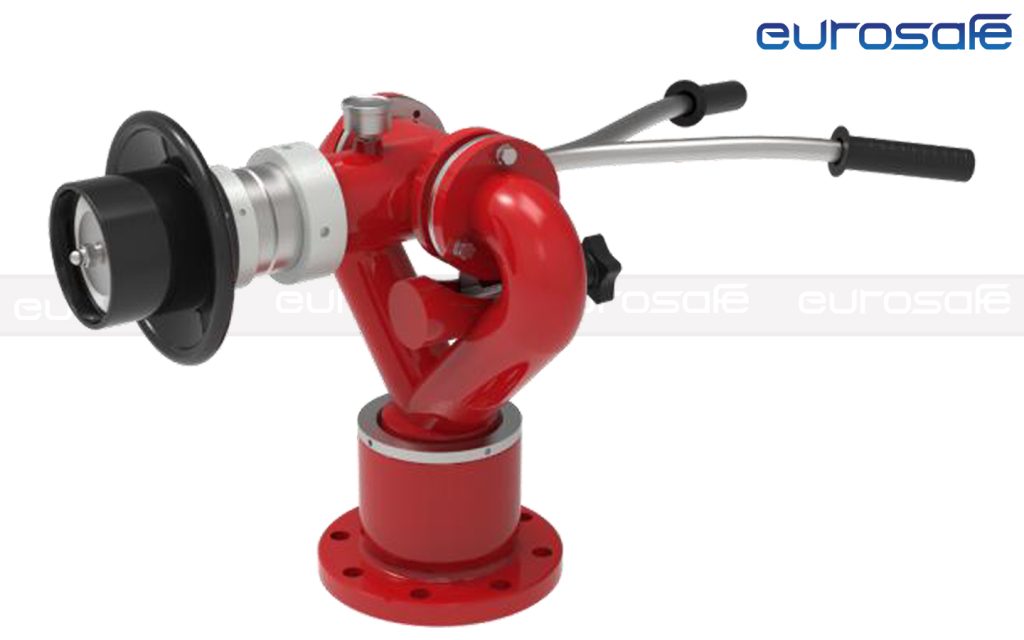

MANUAL FIRE WATER MONITOR ES0304 ES30-50

A Manual Fire Water Monitor, also known as a “fire monitor ” is an equipment used in industrial fire protection systems. It is specifically designed to deliver an amount of water or firefighting foam over a distance. This provides firefighters, with a tool to tackle fires that’re difficult to access or pose significant risks if approached closely. It’s Designed as per NFPA Standard.

Water Foam Monitor, WATER MONITOR, FIRE WATER MONITOR,PORTABLE FIRE WATER MONITOR, AUTOMATIC WATER CANNON, MONITOR,PORTABLE MONITOR,WATER CANNON, Remote Control Monitor

Features

  • Aluminum alloy construction;
  • Flow Rate adjustable;
  • Jetting Pattern: Straight stream, Fog;
  • 360° rotation horizontally;
  • -45° to +85° elevate vertically;
  • Flange standard: BS4504, ANSI150, GB, etc.

Technical Parameter

Model Number ES0304- ES30-50
Flow Rate 1800-2400-3000 LPM Adjustable Nozzle
Working Pressure 10 Bar
Max. Reach @ 10 bar 65 meters @ 3000 LPM
Max. Fog Angle 120°
Max Range Of Monitor -45° to +85° Vertically, 360° Rotation
Waterway Size 2.5”(65mm)
Monitor Outlet 2.5” (50mm) NH male thread
Monitor Inlet Flange 4” BS4504 is standard, other standard flange is available
Material Monitor & Nozzle - aluminum alloy
Triller - SS304 Stainless steel
Download Datasheet
