Aerosol
Fire Extinguishing System

Introduction

To meet the safety needs of the current auto transportation industry, our company has launched the new auto gaseous fire-extinguishing products-The Auto Gaseous Fire-Extinguishing Tank. The product has gone through extensive market researches and numerous scientific experiments. Currently, the products allow for multiple startup modes (both manual and auto) and cater to different customer demands. Integrating new features such as small size, low weight, simple operation and maintenance of the device, the mini series products also inherit features of low-temp series products, which are highly efficient and secure.

Features

Parameters

ImageModelCapacityProtection SpaceDischage TimeDiameterWeightShell MaterialCertificatesService life

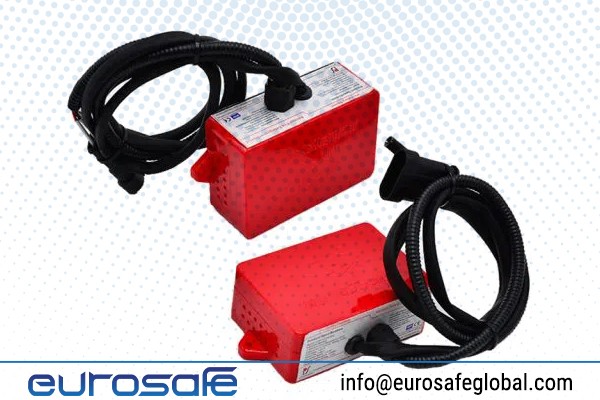

Image 5_Aerosol_Fire_Extinguishing_System_parameter_image_1Model S-AAE-03Capacity 30gProtection Space 0.2m3 Dischage Time 5sDiameter 125x69x38mmWeight 285gShell Material ABSCertificates ISO, CE Service life 10years

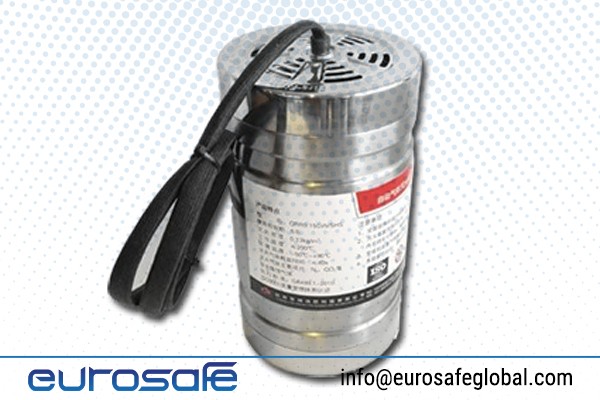

Image 7_Aerosol_Fire_Extinguishing_System_parameter_image_3Model S-AAE-06-C3Capacity 60gProtection Space 0.6m3Dischage Time 10sDiameter Φ63x100mmWeight 570gShell Material SS304 Certificates ISO, CEService life 10years

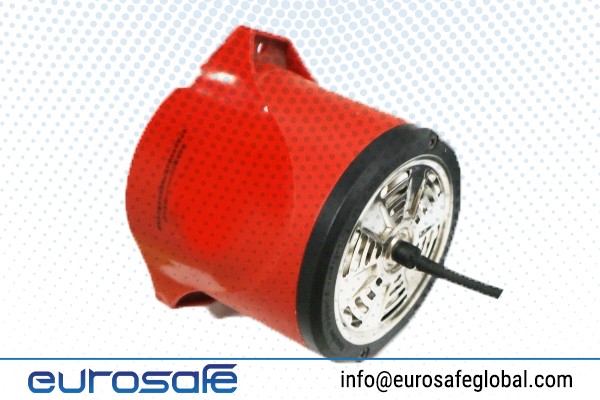

Image 6_Aerosol_Fire_Extinguishing_System_parameter_image_2Model S-AAE-10-C2Capacity 100gProtection Space 0.8m3 Dischage Time 10sDiameter Φ100x100mmWeight 850gShell Material ABSCertificates ISO, CEService life 10years

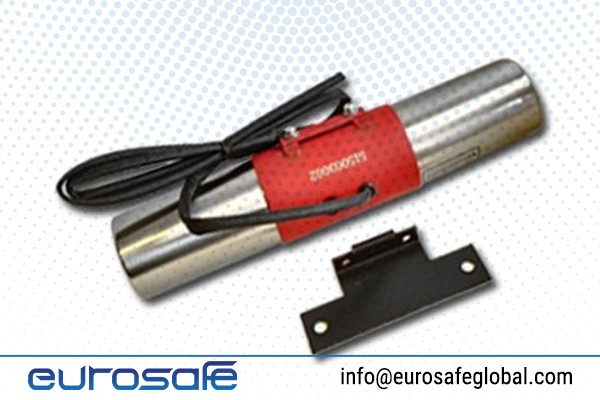

Image 8_Aerosol_Fire_Extinguishing_System_parameter_image_4Model S-AAE-10-CS3Capacity 100gProtection Space 0.8m3 Dischage Time 10SDiameter Φ69x290mmWeight 1130g Shell Material SS304 Certificates ISO, CE Service life 10years
Image 7_Aerosol_Fire_Extinguishing_System_parameter_image_3Model S-AAE-16-C3Capacity 160g Protection Space 1.6m3Dischage Time 10sDiameter Φ76x135mm Weight 1070g Shell Material SS304Certificates ISO, CEService life 10years

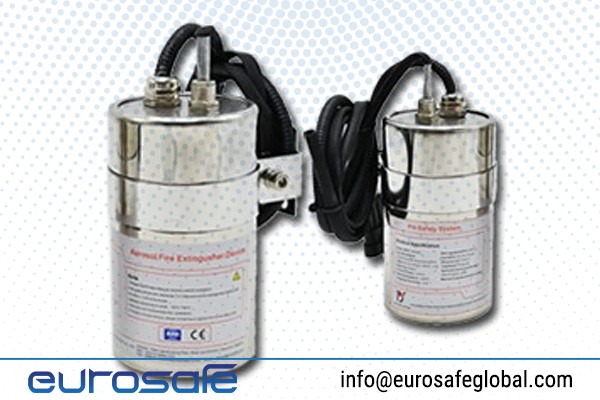

Image 9_Aerosol_Fire_Extinguishing_System_parameter_image_5Model S-AAE-25-C3Capacity 250gProtection Space 2.0m3 Dischage Time 20sDiameter Φ100x175mmWeight 1750gShell Material SS304Certificates ISO, CE Service life 10years
Image 7_Aerosol_Fire_Extinguishing_System_parameter_image_3Model S-AAE-50-C3Capacity 500gProtection Space 3.5m3Dischage Time 30sDiameter Φ140x225mmWeight 2700gShell Material SS304Certificates ISO, CEService life 10years

Start Model : (Passive) Heat self-startup

(Passive) Heat Self-start up: Using the fire detection harness pre-set in the protected area. Once the temperature in the protected area rises to the startup temperature(175±10oC )of the fire detection harness, the harness can start the extinguishing device in a second and release extinguishing gas to put out the fire.

APPLICATION SCOPE

Aerosol Fire Extinguishing System

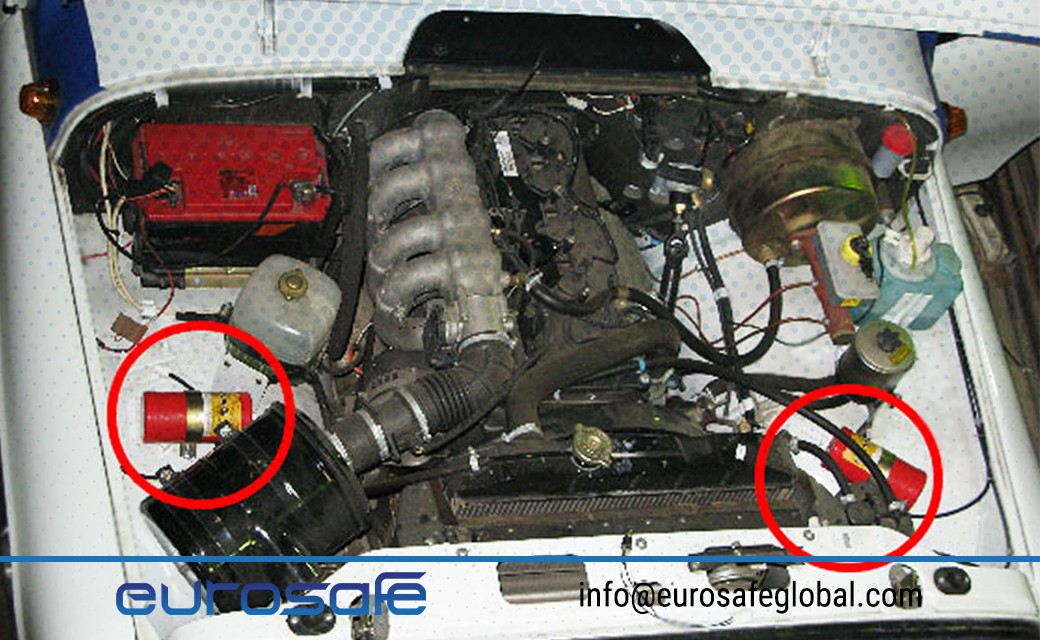

Engine Room of Vehicle

Aerosol Fire Extinguishing System

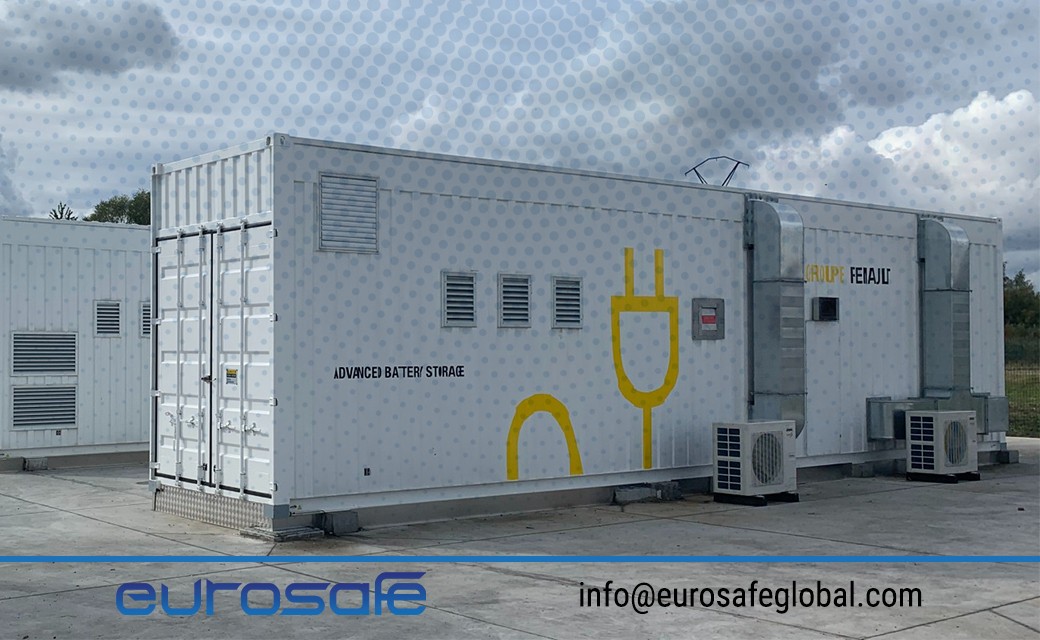

New Energy Battery Compartment

Aerosol Fire Extinguishing System

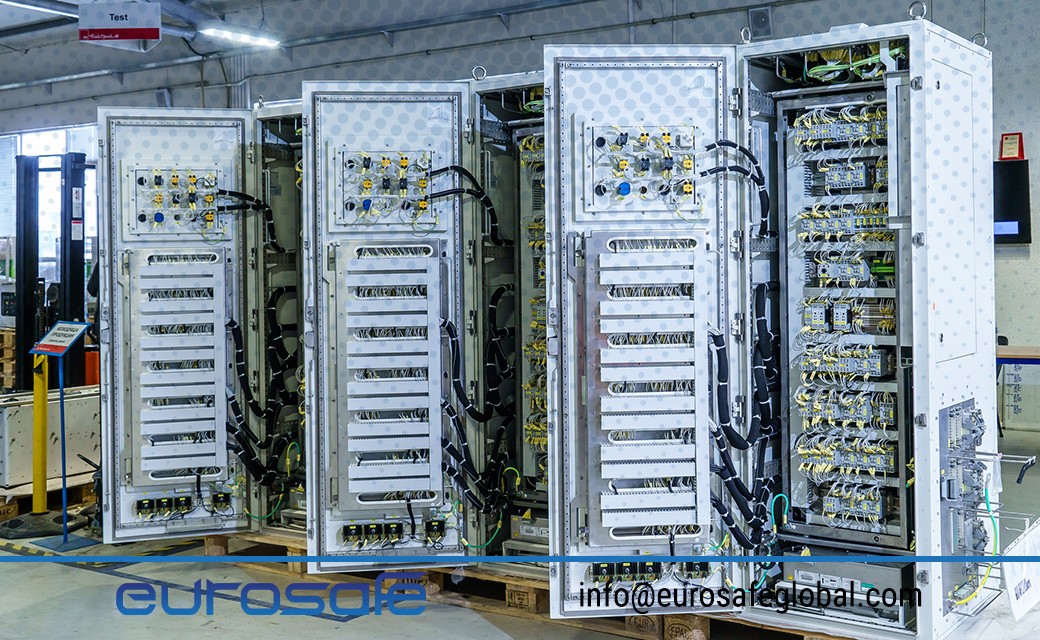

Electric cabinet

Aerosol Fire Extinguishing System

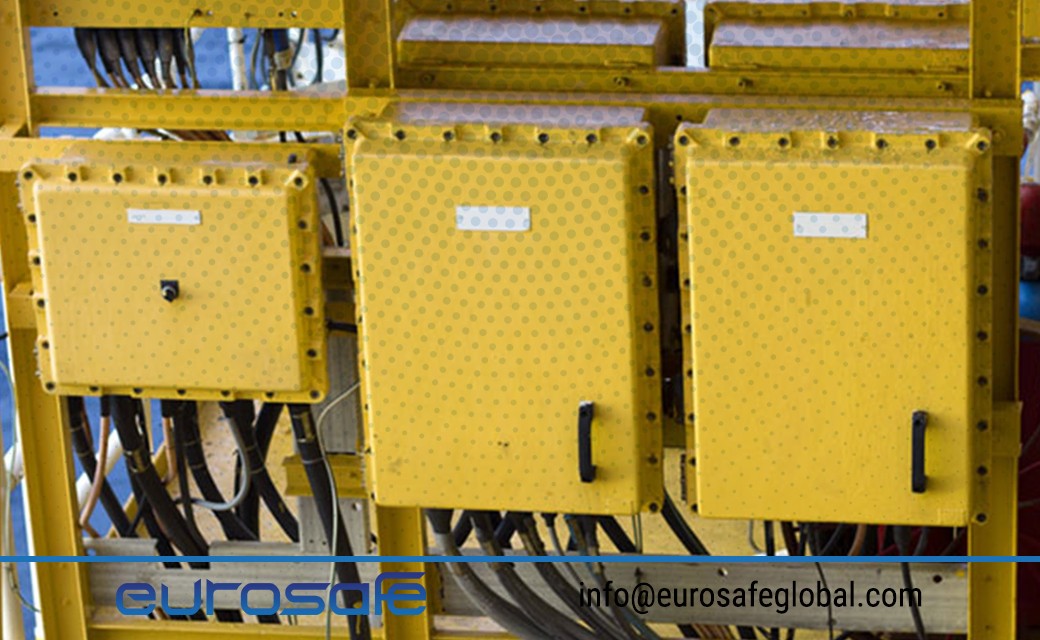

Electric equipment box

Aerosol Fire Extinguishing System

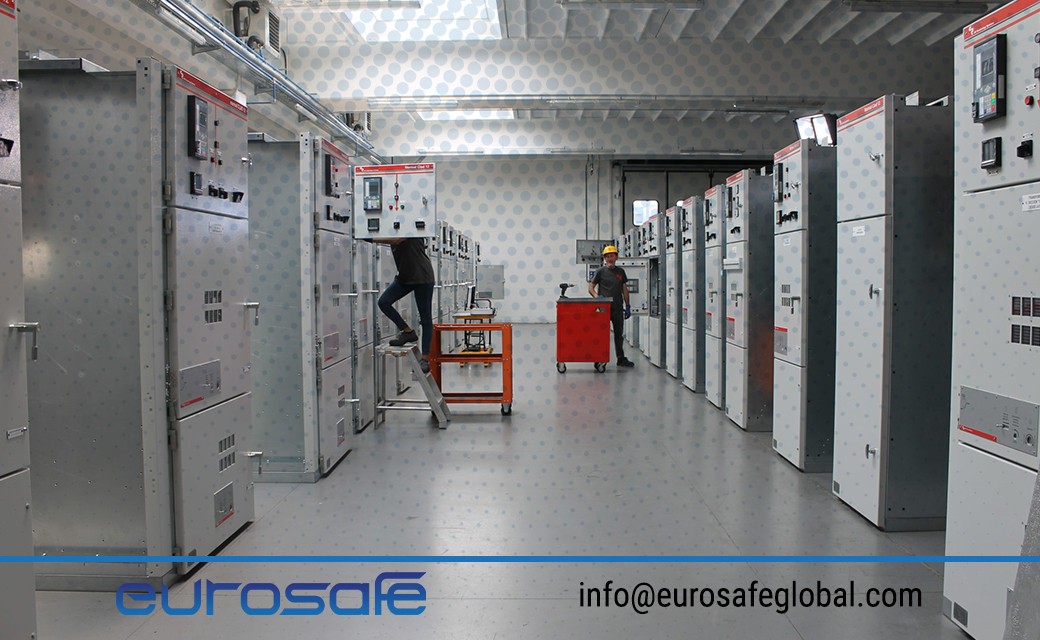

Electric equipment room

Aerosol Fire Extinguishing System

Ect. Relatively closed space.

Requirements for the Install Environment

  • (1) Temperature : -50oC℃ ~+90oC;
  • (2) Humidity :≤95%;
  • (3) Space : Protected Areas are closed or relatively closed

Note

The fire extinguisher is connected to fire fighting control pannel, it is one contents of the fire fighting system. In one system the most can connected 10 fire extinguishes, each fire extinguisher is series connected. If protection area is more than 10 fire extinguishes, should be divided to more system.

Aerosol Fire Extinguishing System

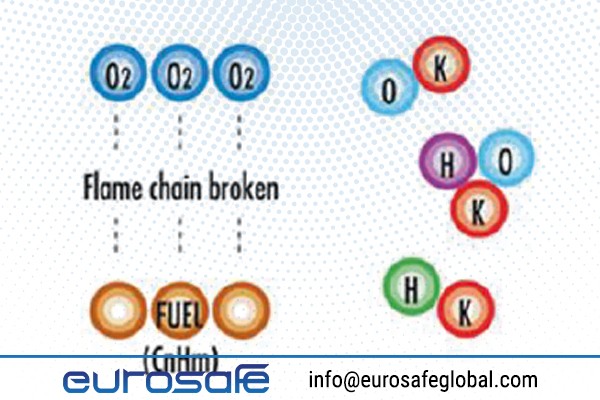

Stage 1

Fire is propagated by the ‘flame chain carriers’ O, H & OH

Aerosol Fire Extinguishing System

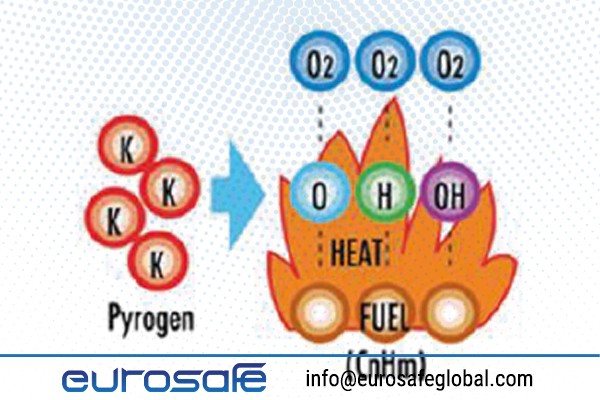

Stage 2

Pyrogen aerosol introduces potassium radicals (k) into the flame chain reaction

Aerosol Fire Extinguishing System

Stage 3

K radicals attach themselves to 0,H & OH and remove them from the flame chain without depleting Oxygen

AEROSOL Fire Extinguishing Principles

After the fire-extinguishing device is activated, fire-extinguishing chemicals will produce fire-extinguishing gases through chemical reaction. And the effective constituents for fire-extinguishing are metallic oxide particles and inert gases. Under the effect of heat, the vaporized metal ions and positive ions in the fire-extinguishing gas will collect and then consume the active groups in the flames in large quantities. Also, the process will decrease the number of combustion radicals, absorb as well as neutralize them in an efficient way, so as to achieve fire extinguishing with chemical inhibition

Aerosol Fire Extinguishing System

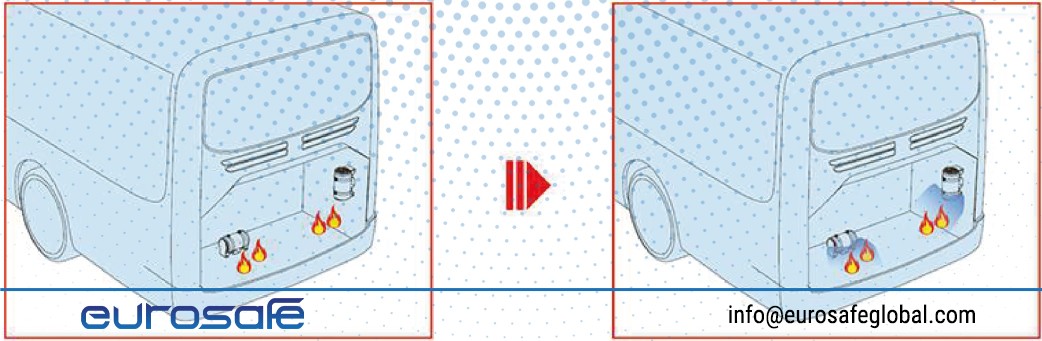

BUS

(Mini Series of Condensed Aerosol Automatic Fire Extinguishing Device)

Aerosol Fire Extinguishing System

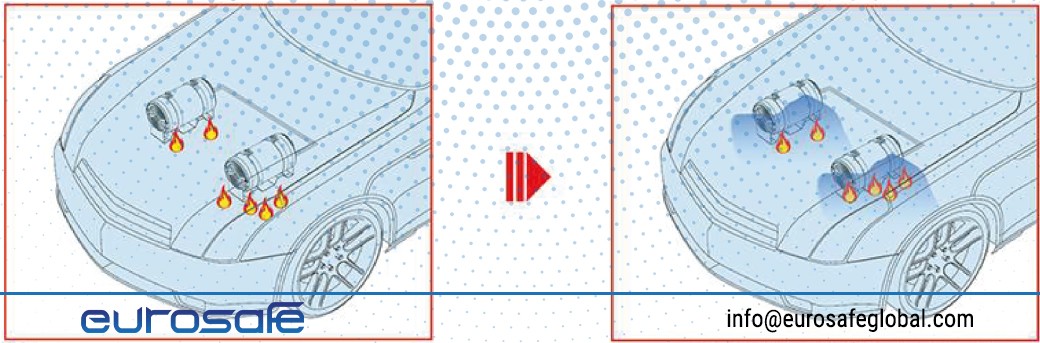

CAR

(Mini Series of Condensed Aerosol Automatic Fire Extinguishing Device)

The condensed aerosol fire extinguishing device will immediately activate when fire danger occurs. The fire extinguishing gases will be quickly emitted by the device to achieve highly efficient fire-extinguishing, minimizing fire loss.

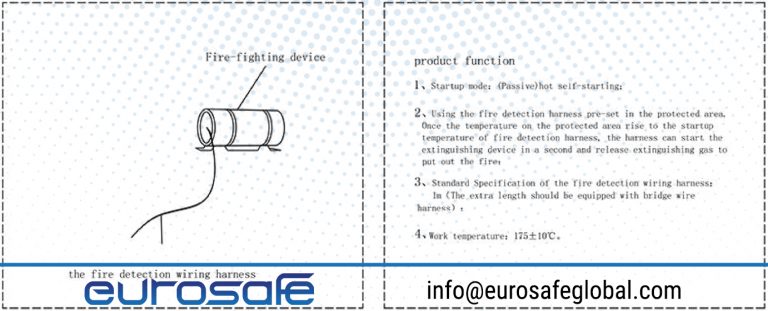

Product Function

Startup:

Aerosol Fire Extinguishing System

Using the fire detection harness pre-set in the protected area. Once the temperature on the protected area rise to the startup temperature of fire detection harness, the harness can start the extinguishing device in a second and release extinguishing gas to put out the fire.

Many sets of linkage mode:

Aerosol Fire Extinguishing System

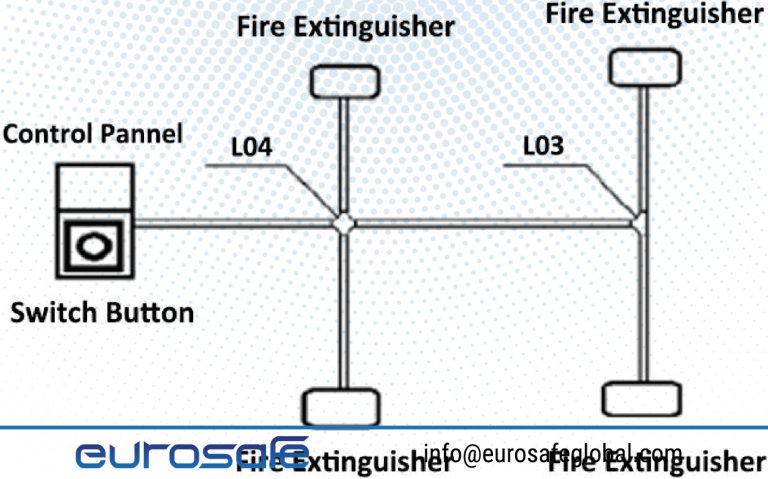

(Passive) hot self-starting : Formed in series through L02/L03/L04 linkage interface. L02 / L03 / L04 linkage interface: a fitting that can link many devices which are (Passive)hot self-starting. L02 can Series connect two devices, L03 can Series connect three devices, L04 can Series connect four devices.

Request for Datasheet
Aerosol Fire Extinguisher
16 Aerosol Fire Extinguishing System Many sets

An aerosol fire extinguisher is a modern and innovative firefighting device designed to quickly and effectively combat small fires. Unlike traditional fire extinguishers that rely on liquid or gas discharge, aerosol extinguishers release a fine mist or aerosol spray of fire-suppressing agents. These agents are typically non-toxic and environmentally friendly, making them suitable for various indoor settings.

Product SKU: ESP02-005

Product Brand: EUROSAFE

Product In-Stock: InStock
